Projects
Delivering precision-engineered components for major aerospace platforms with uncompromising quality and excellence.

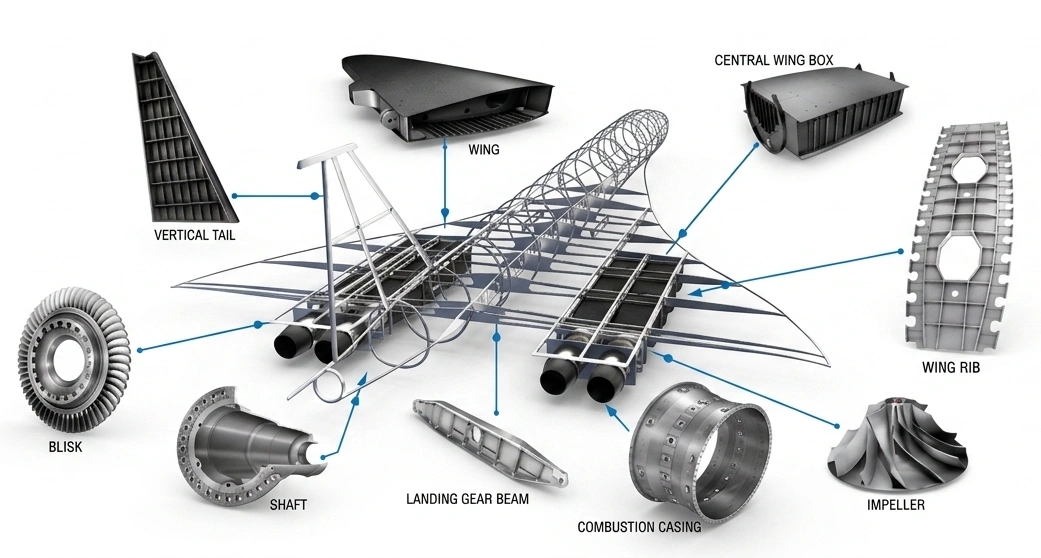

Aerospace Components We Manufacture
From structural airframe parts to critical rotating components, our precision machining capability spans the full range of aerospace hardware.
Airborne Parts

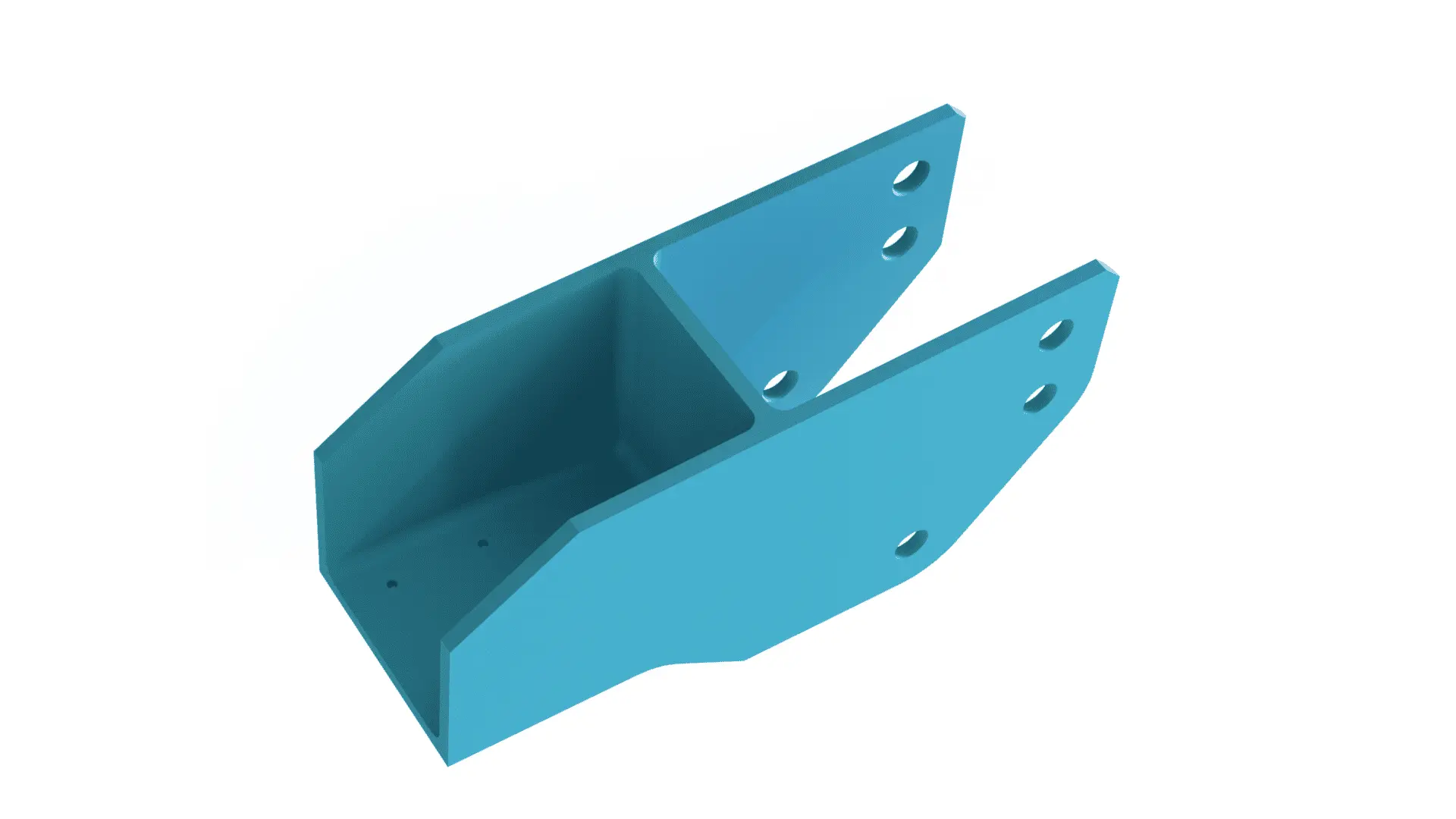

Airborne Mounting Bracket Assembly
Twin-plate aerospace mounting bracket with a machined pocket and precision bolt-hole pattern. Designed for secure, load-bearing attachment on airborne structures.

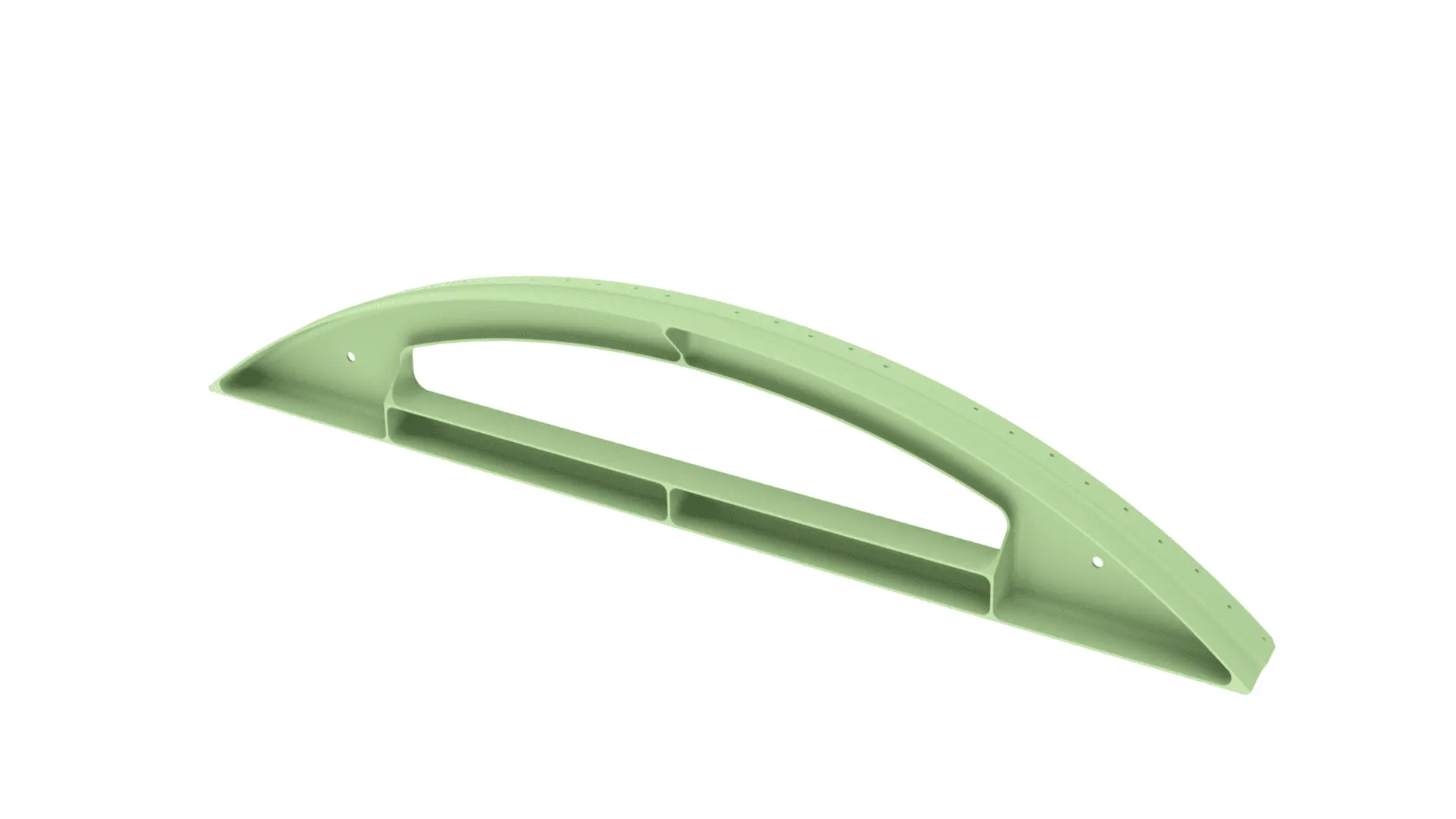

Contoured Airborne Rib Component
Contoured aerofoil-profile rib with a hollow twin-channel core and edge-drilled fastener line. Engineered for strength-to-weight efficiency in airborne parts.

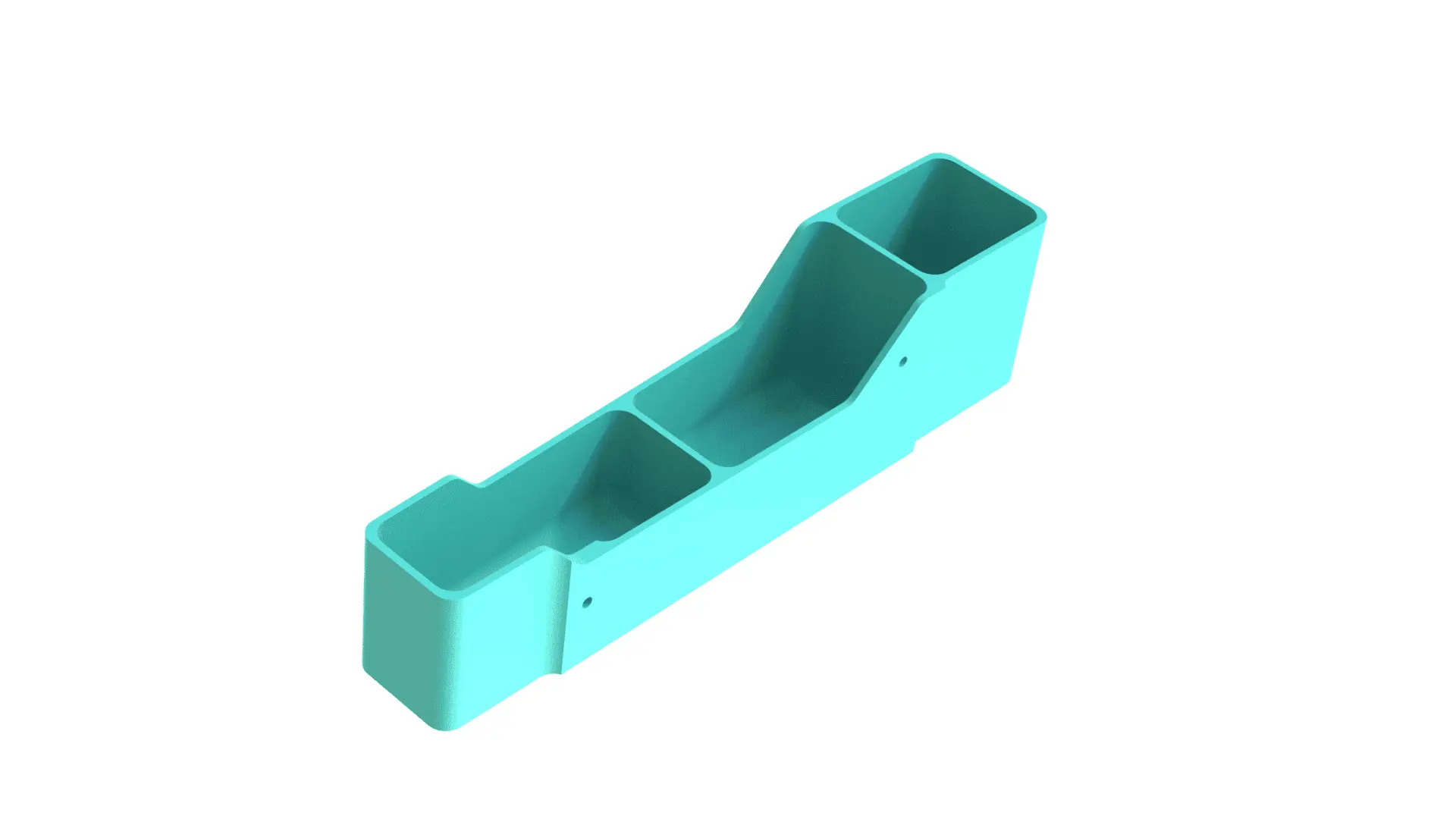

Stepped Multi-Bay Airborne Channel Component
Stepped, multi-bay channel component machined from solid with a raised offset section. Compact partitioned pockets keep the part light while housing multiple fastener points.

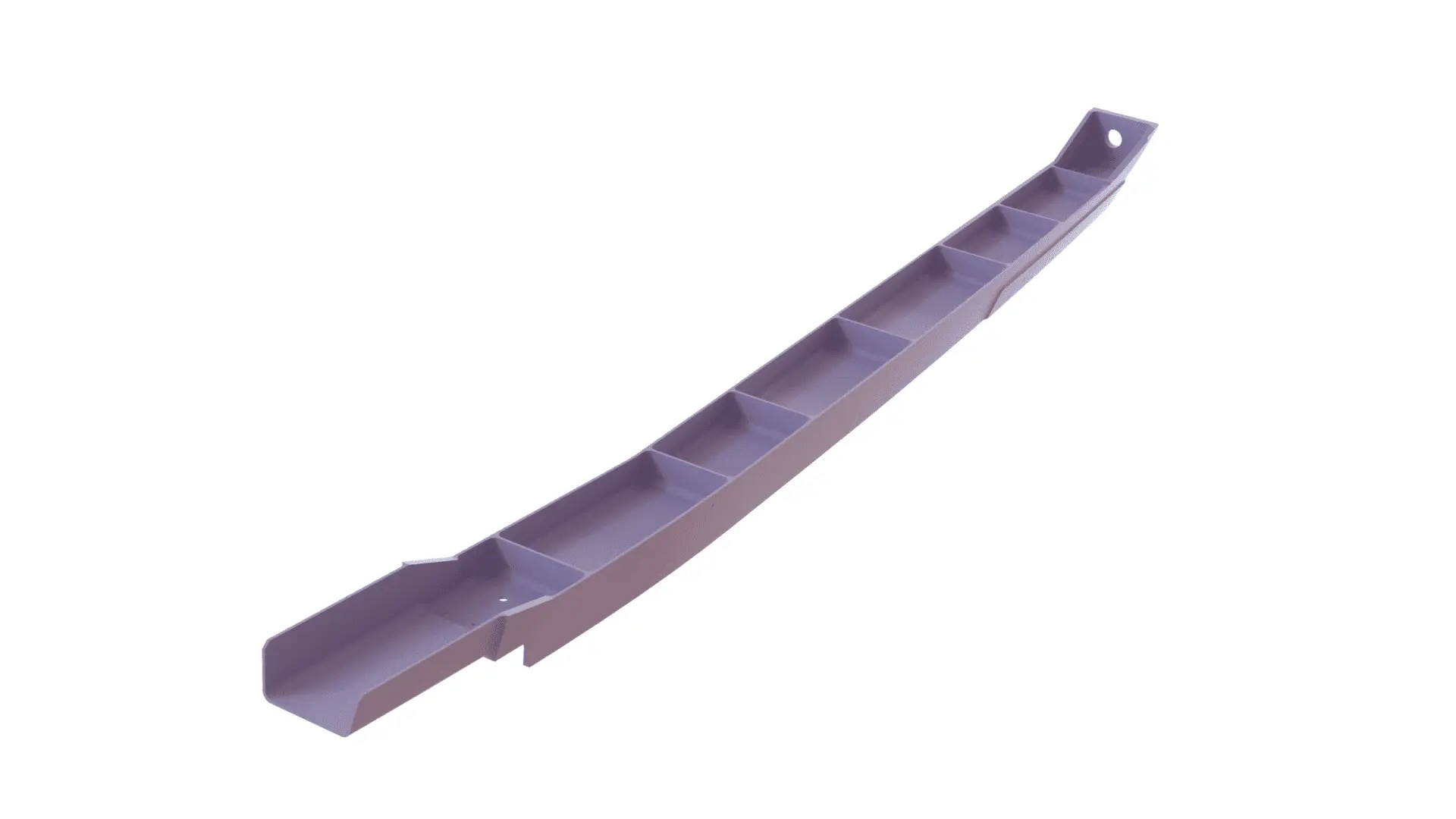

Tapered Multi-Bay Airborne Support Rail
Long tapered support rail with a row of partitioned bays and a mounting hole at the narrow end. Progressive taper trims weight while keeping the section rigid along its length.

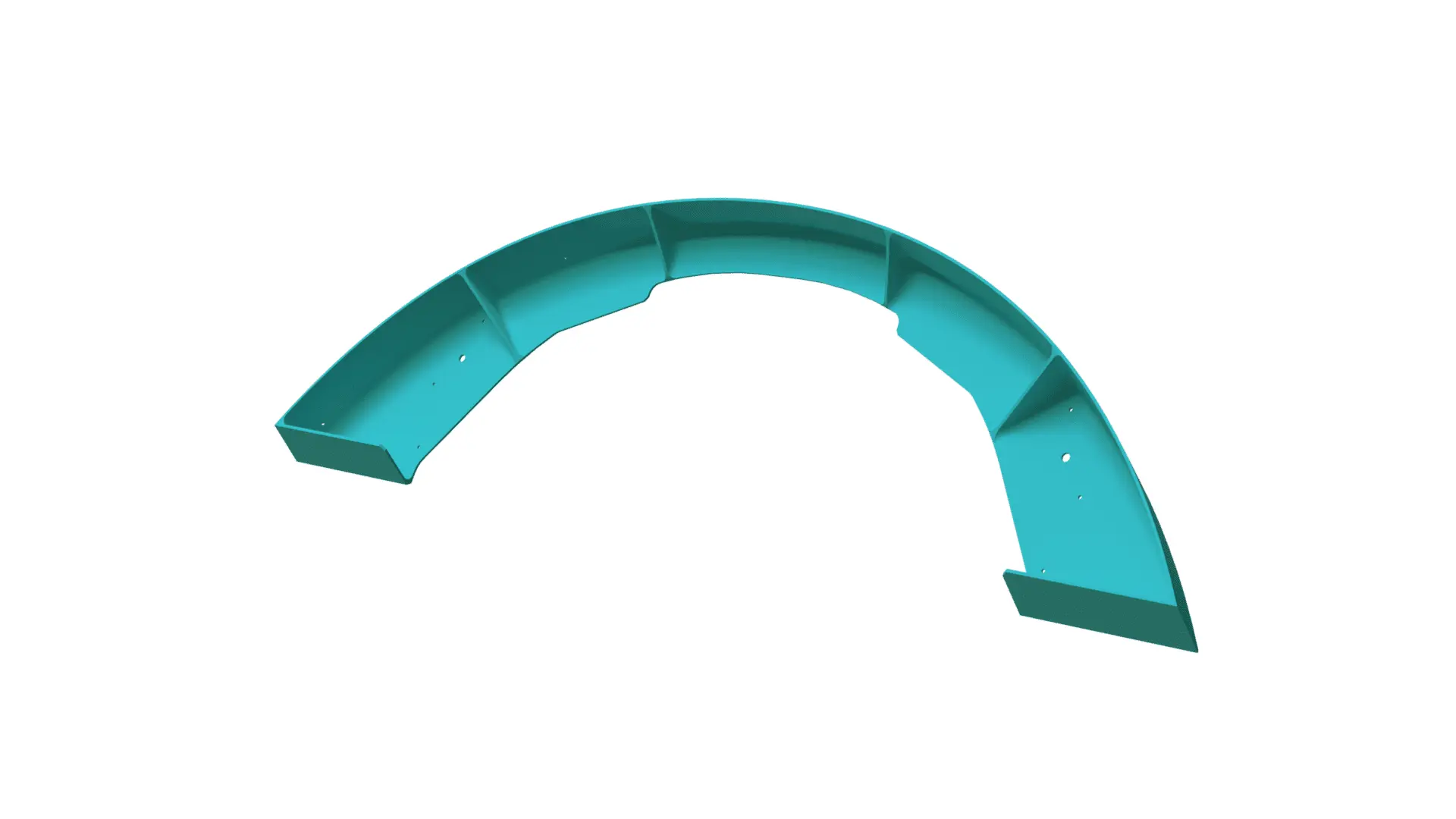

Curved Arc Frame Segment With Fastener Holes
Curved arc-shaped frame segment machined from solid with a row of precision fastener holes along each flange. Built to match a fuselage-radius mounting profile.

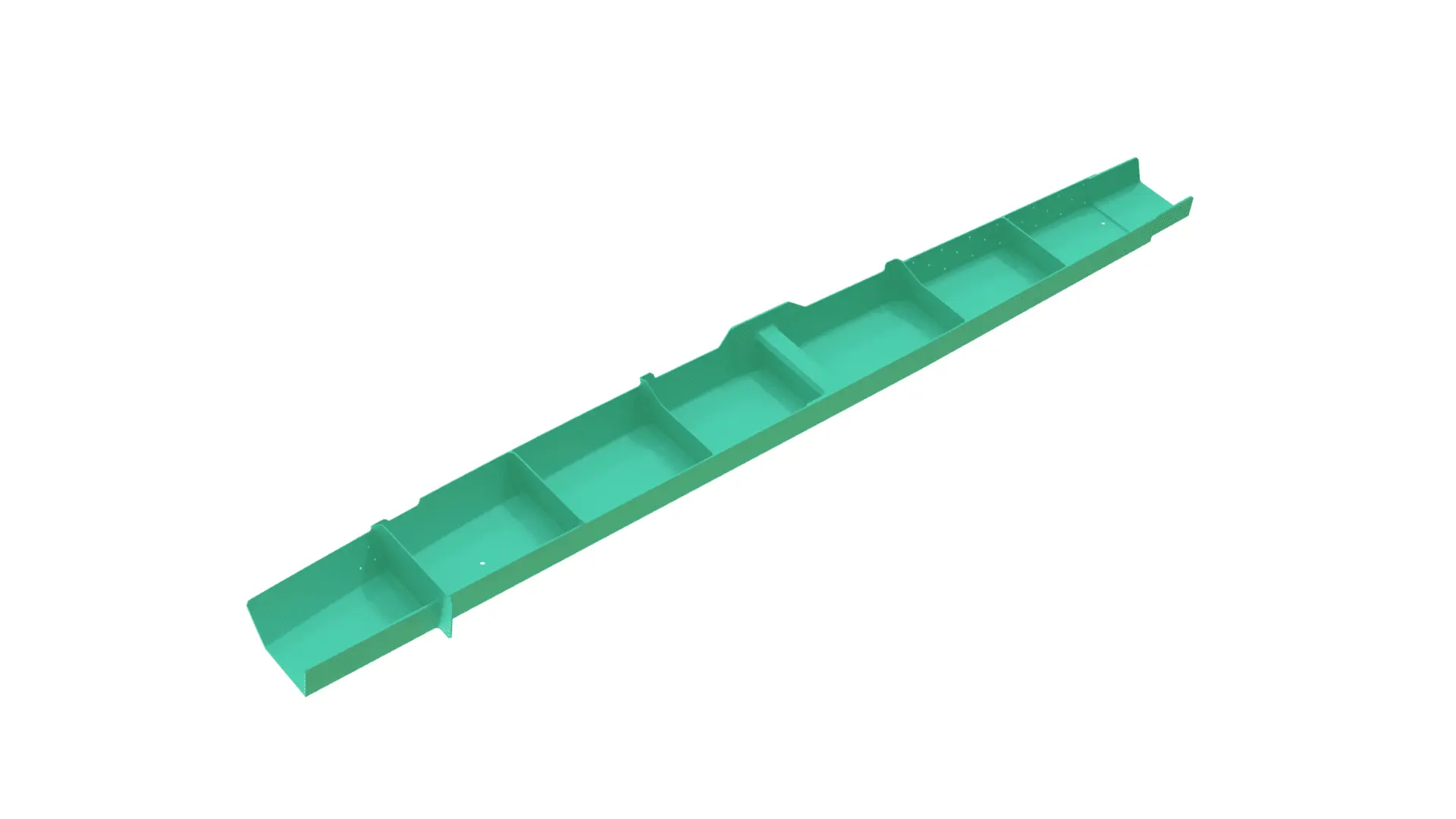

Long Segmented Airborne Support Rail
Long segmented support rail divided into equal machined bays with a curved mounting flange at one end. Consistent bay spacing keeps the structure both light and strong.
Space & Satellite components

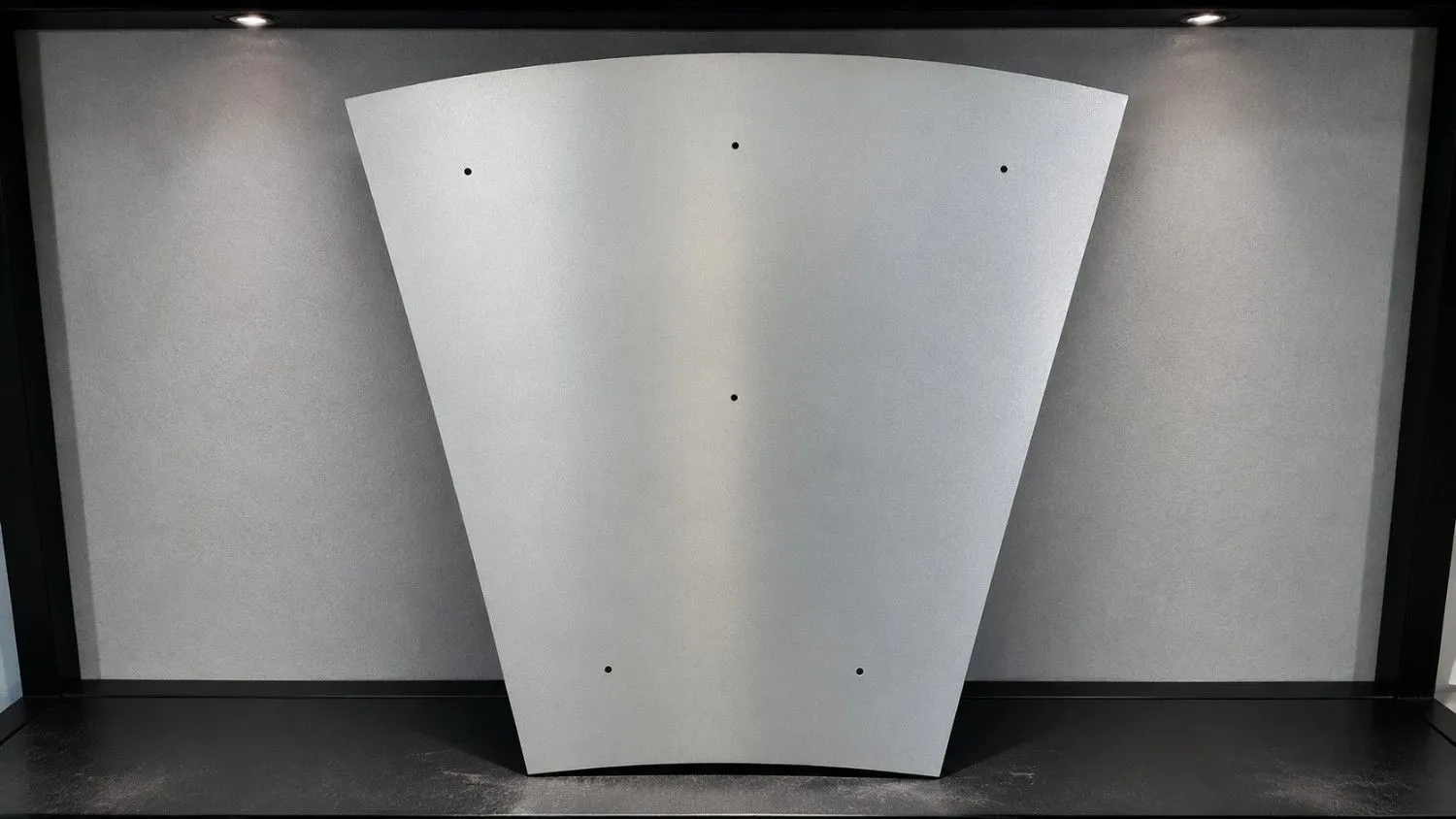

Finished Reflector Panel Packed For Dispatch
Curved aluminium reflector panel finished and foam-packed for dispatch. Machined to a lightweight, high-accuracy parabolic profile.

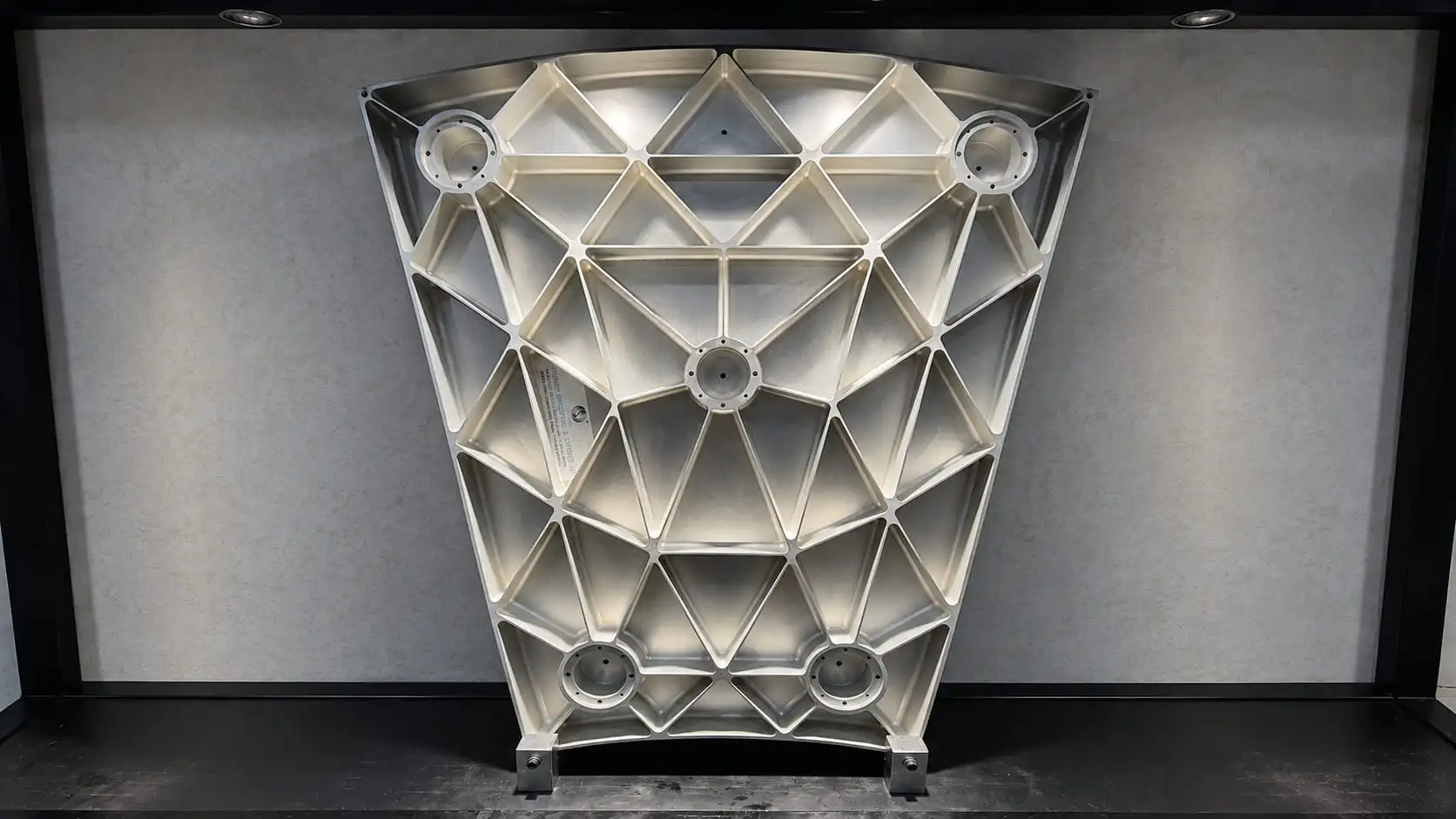

Isogrid Reflector Panel Underside
Isogrid-machined reflector panel in Aluminium 6061-T651 with up to 91% weight reduction and a resultant wall thickness of 2 mm. Parabolic surface held to 6-micron RMS accuracy over an 850 x 850 mm area.
Aerospace Assembly Fixtures

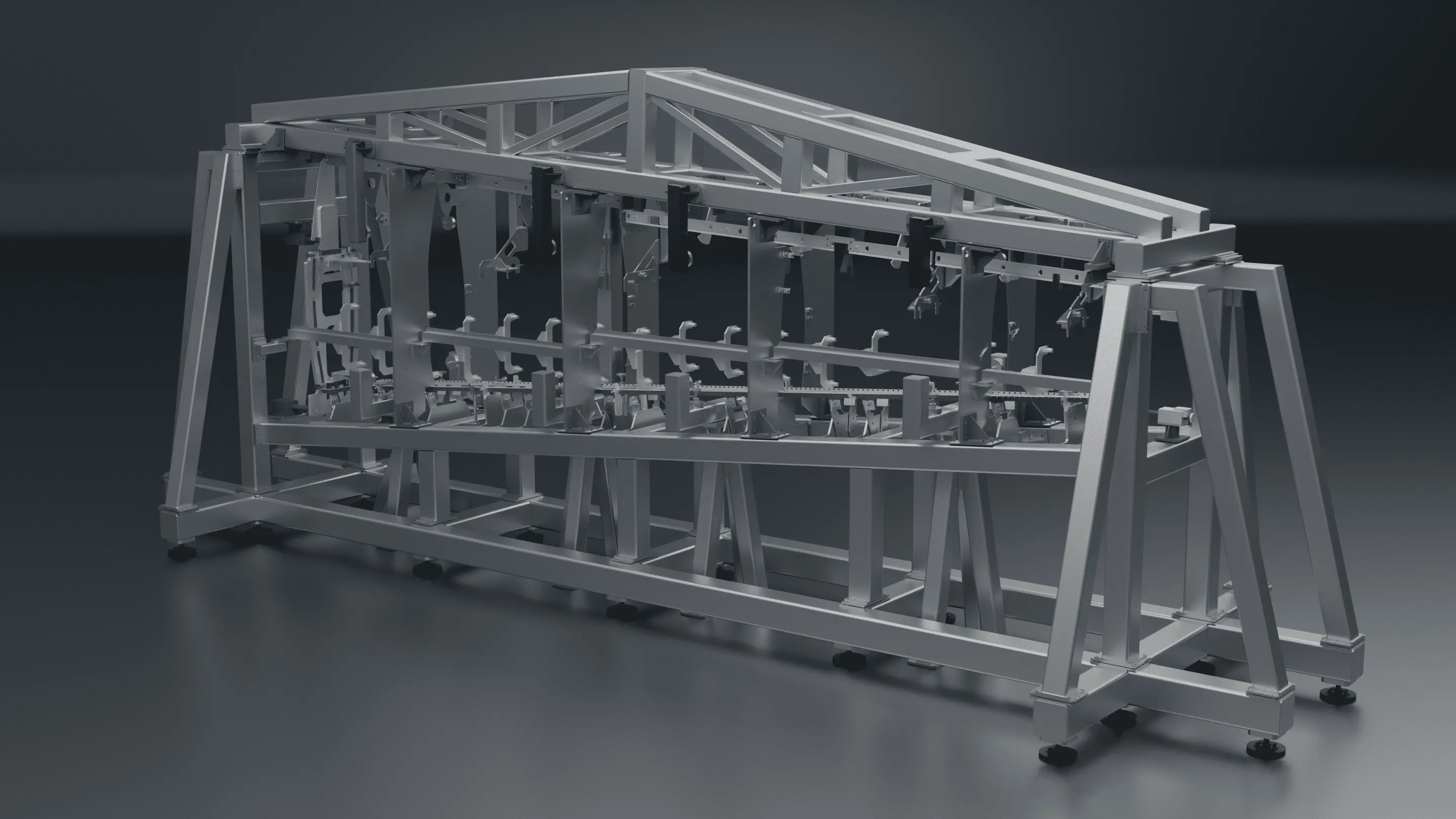

Outer Wing Box And Leading-Edge Assembly Tool
Outer Wing Box and Leading-Edge Assembly Tool, approx. 11170 x 3400 x 4500 mm for a tentative 8500 variety of detail parts. Assembly features laser tracker alignment, fabrication, precision machining, epoxy filling and special chemical processes.

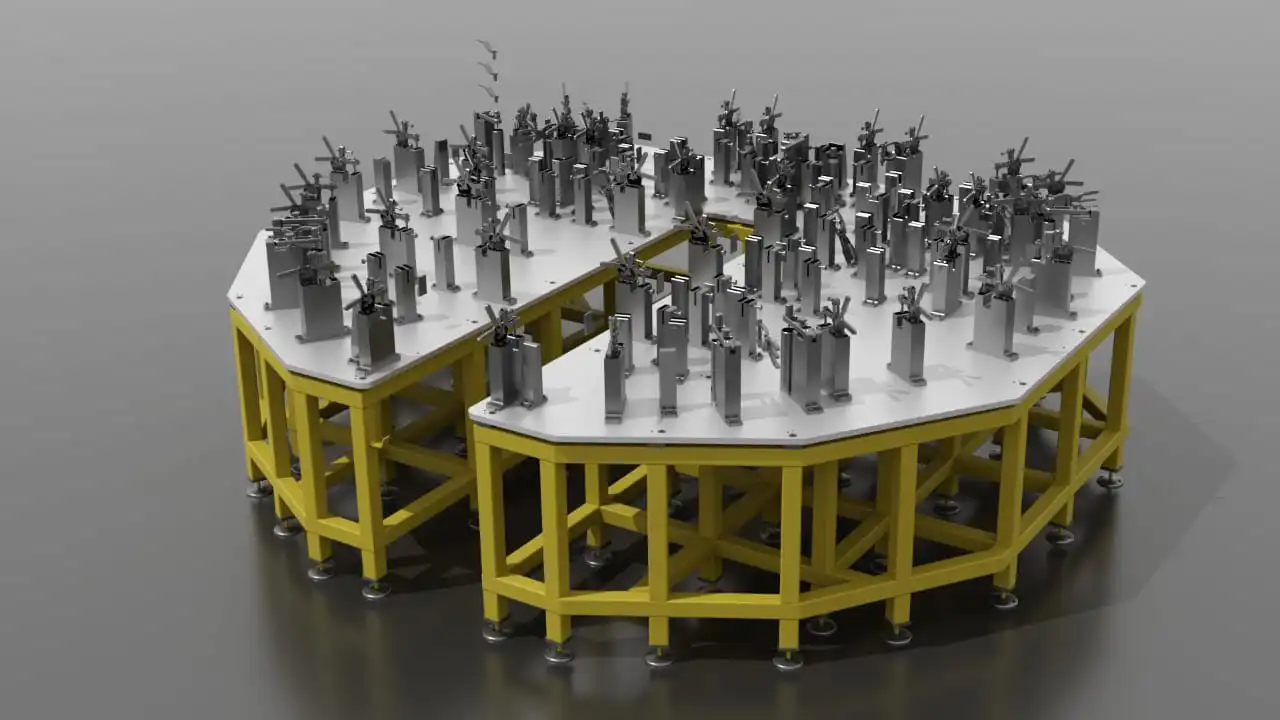

Nose Fuselage - Frame 10 Assembly
Nose Fuselage - Frame 10 Assembly, approx. 3500 x 3000 x 1500 mm for a total of approx. 3500 detail parts. Assembly features laser tracker alignment, fabrication, precision machining, epoxy filling and special chemical processes.

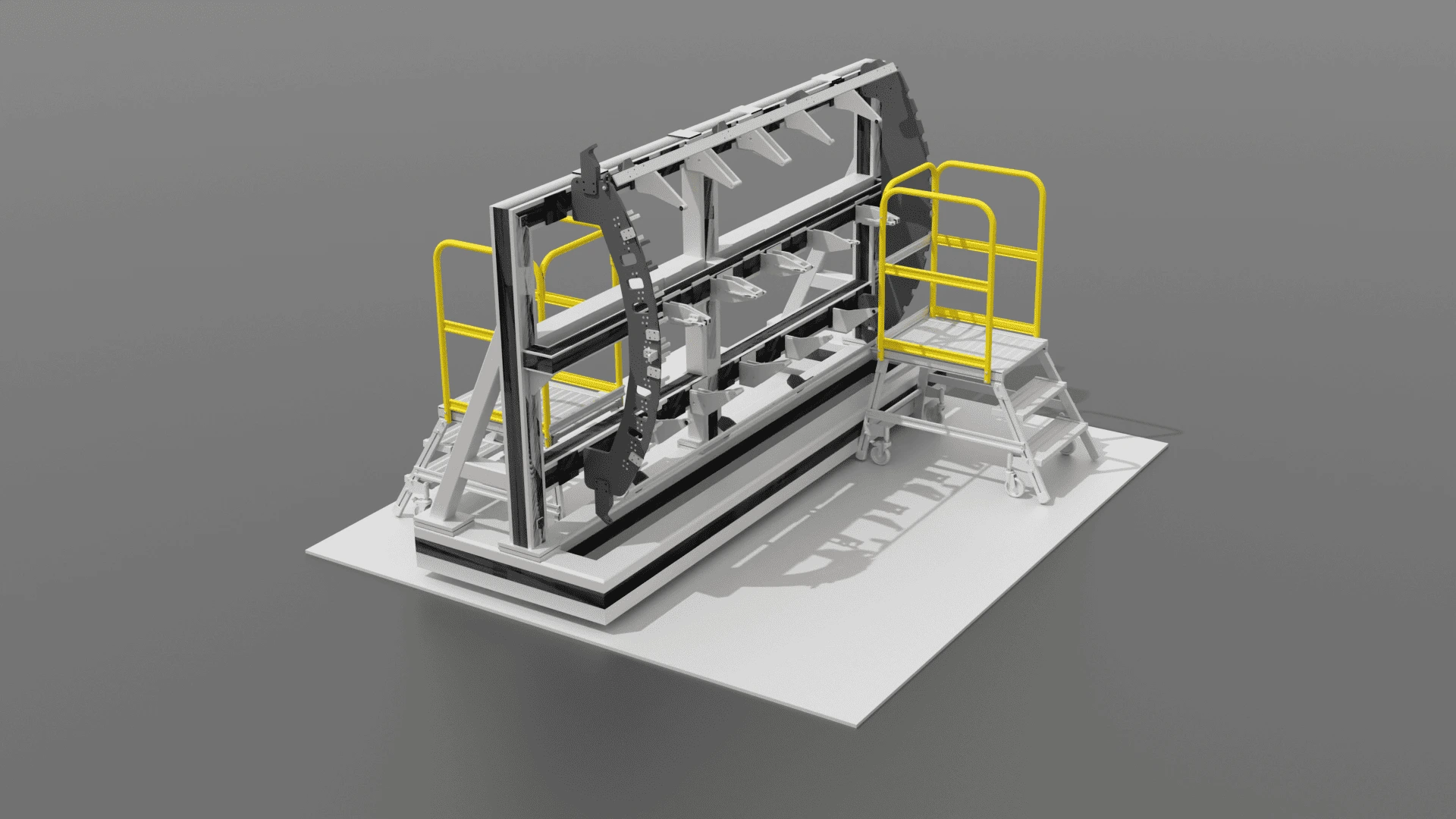

Fuselage Frame Assembly Jig With Access Platforms
Large fuselage-frame assembly jig with integrated mobile access platforms for build and inspection. Material: Aluminium, MS, Stainless Steel. Scope: fabrication, stress relieving, NDT, machining, assembly, testing and installation at customer end.

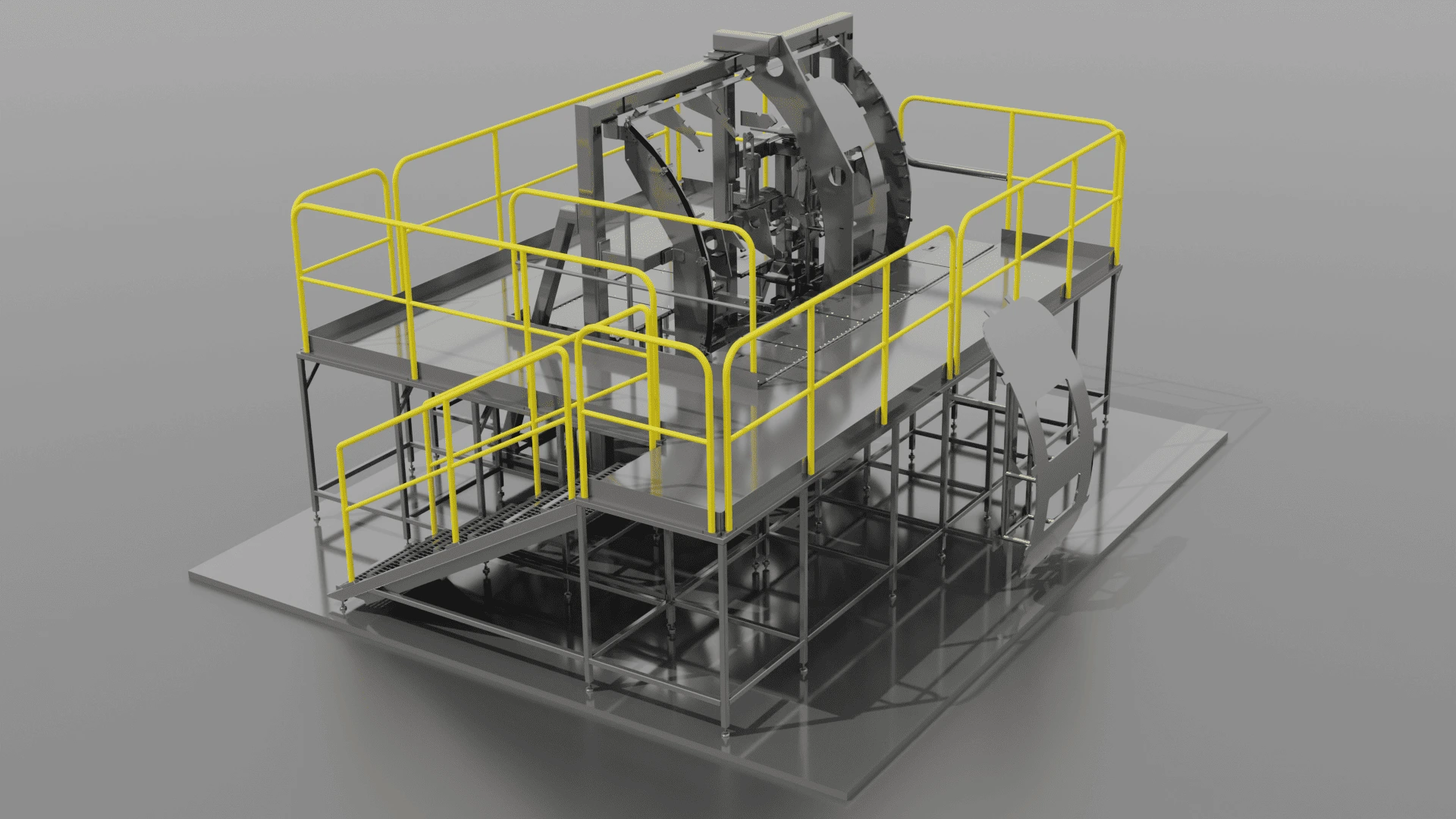

Elevated Frame Assembly Station With Safety Railing
Elevated frame-build station with full yellow safety railing around the working deck. Material: Aluminium, MS, Stainless Steel. Scope: fabrication, stress relieving, NDT, machining, assembly, testing and installation at customer end.
Multi-Level Assembly Jig With Stairs And Platforms
Multi-level assembly jig complex with stairs, ramps and railed platforms for multi-point access. Material: Aluminium, MS, Stainless Steel. Scope: fabrication, stress relieving, NDT, machining, assembly, testing and installation at customer end.

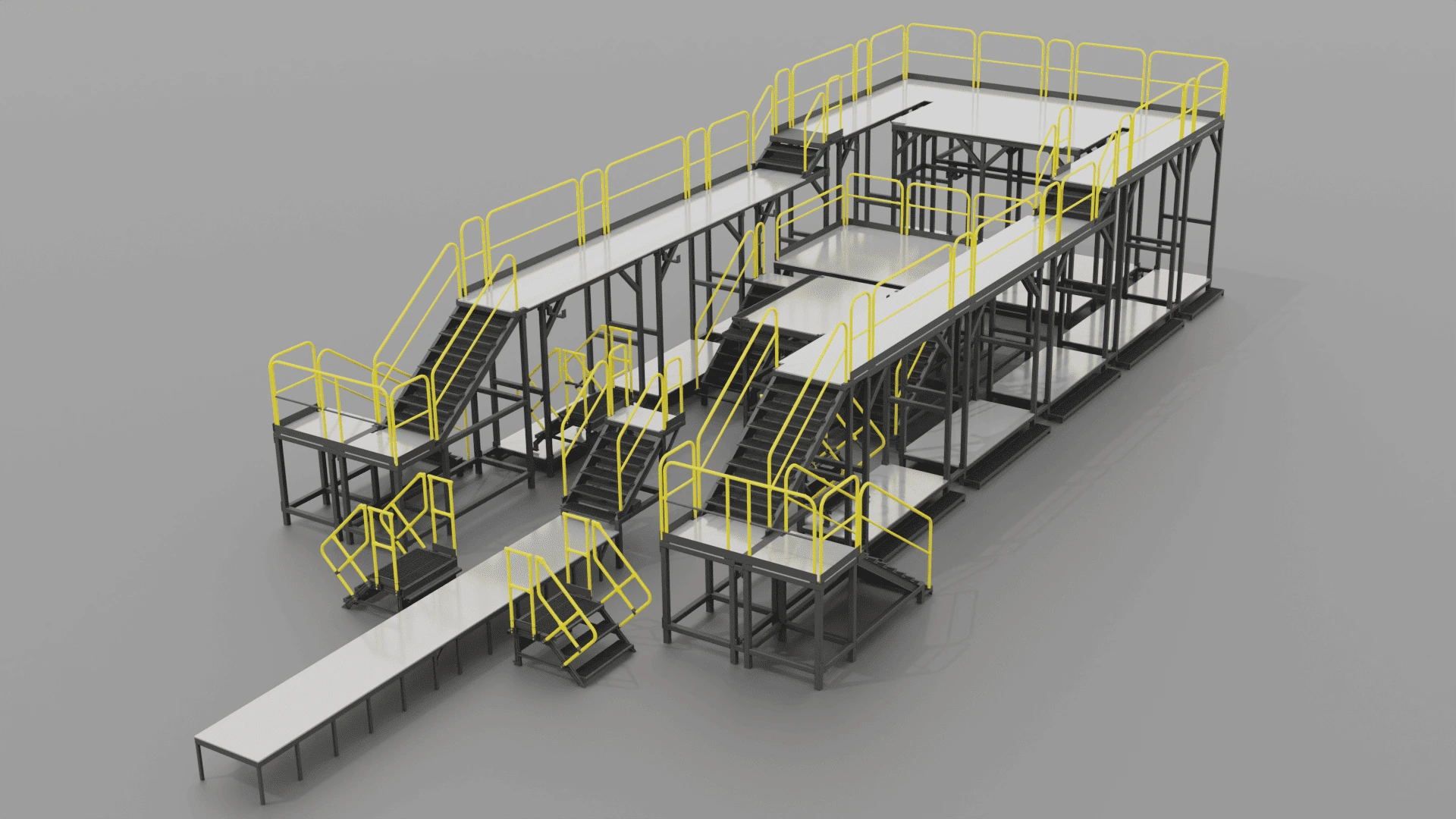

Working Platform For Final Assembly
Working Platform for Final Assembly engineered to provide safe and efficient access during final assembly operations. Material: Aluminium, MS, Stainless Steel. Scope: fabrication, stress relieving, NDT, machining, assembly, testing and installation at customer end.

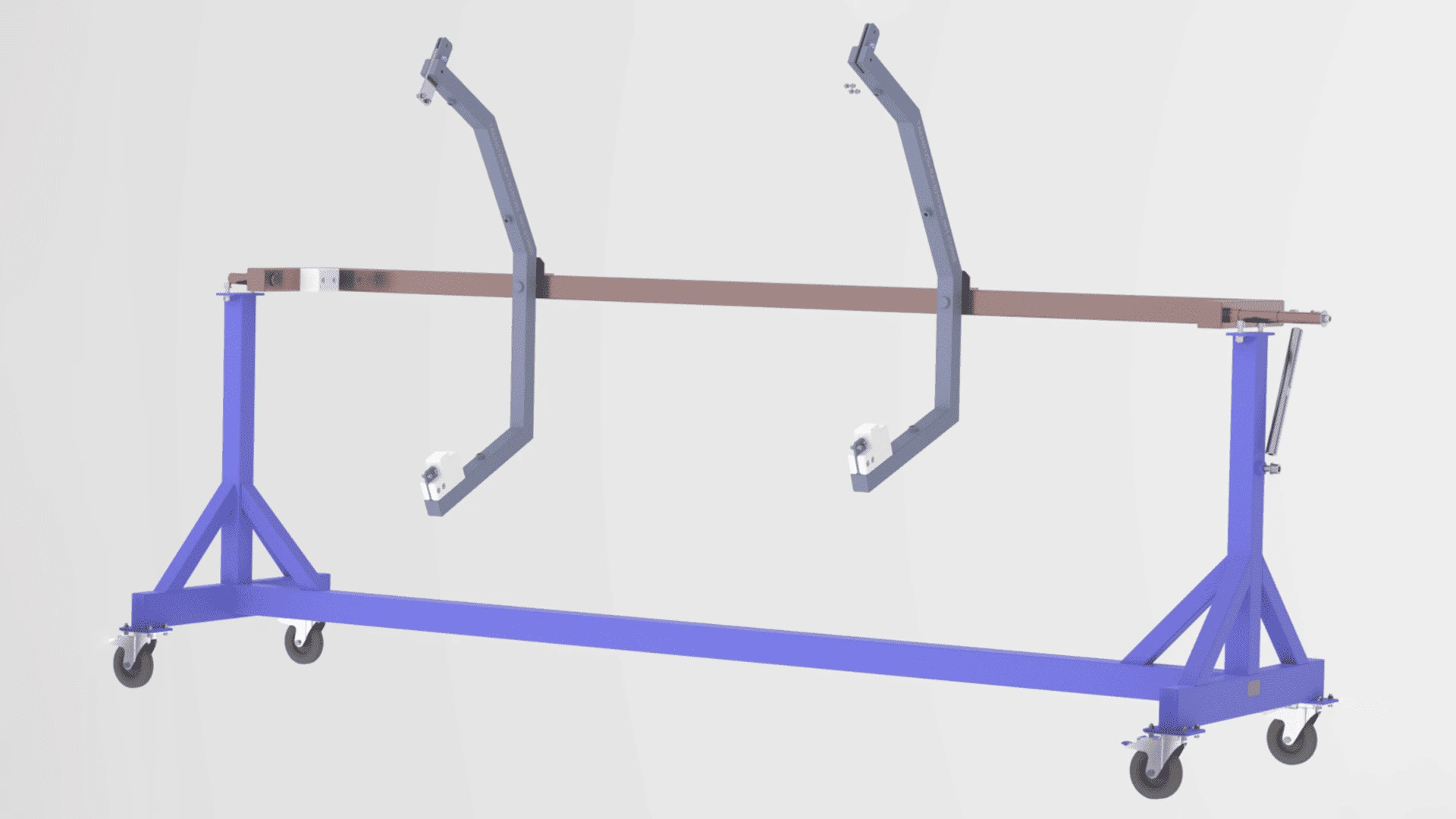

Handling Fixture
Handling fixture with articulated support arms on a mobile frame. Material: Aluminium, MS, Stainless Steel. Scope: fabrication, stress relieving, NDT, machining, assembly, testing and installation at customer end.
Aerospace Jigs & Fixtures

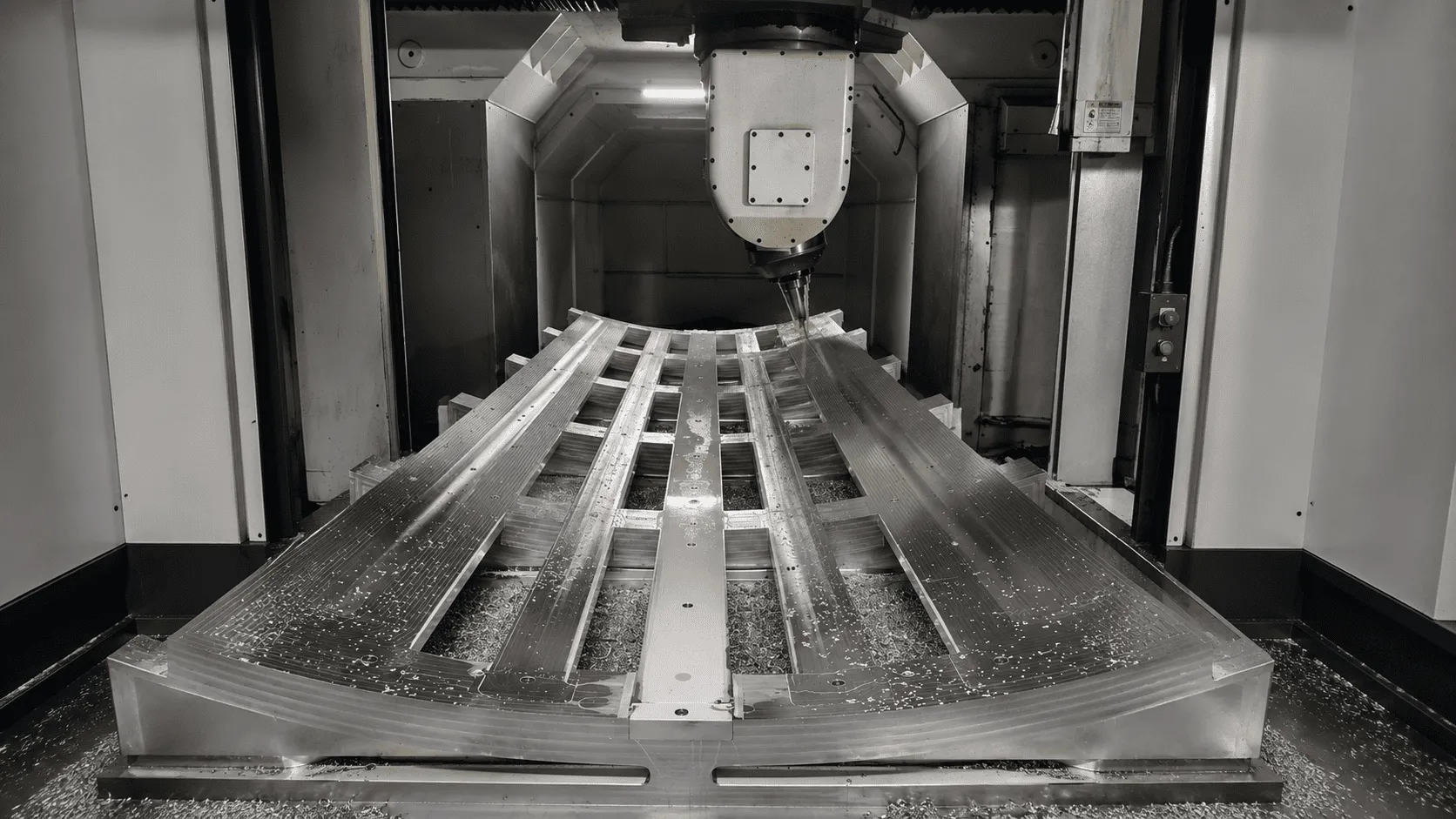

5-Axis Milling Fixture For Chemical Milling Skins
5-axis milling fixture for chemical milling skins. Material: AL 6082 T6. Size: 3000 x 1200 x 245 mm.

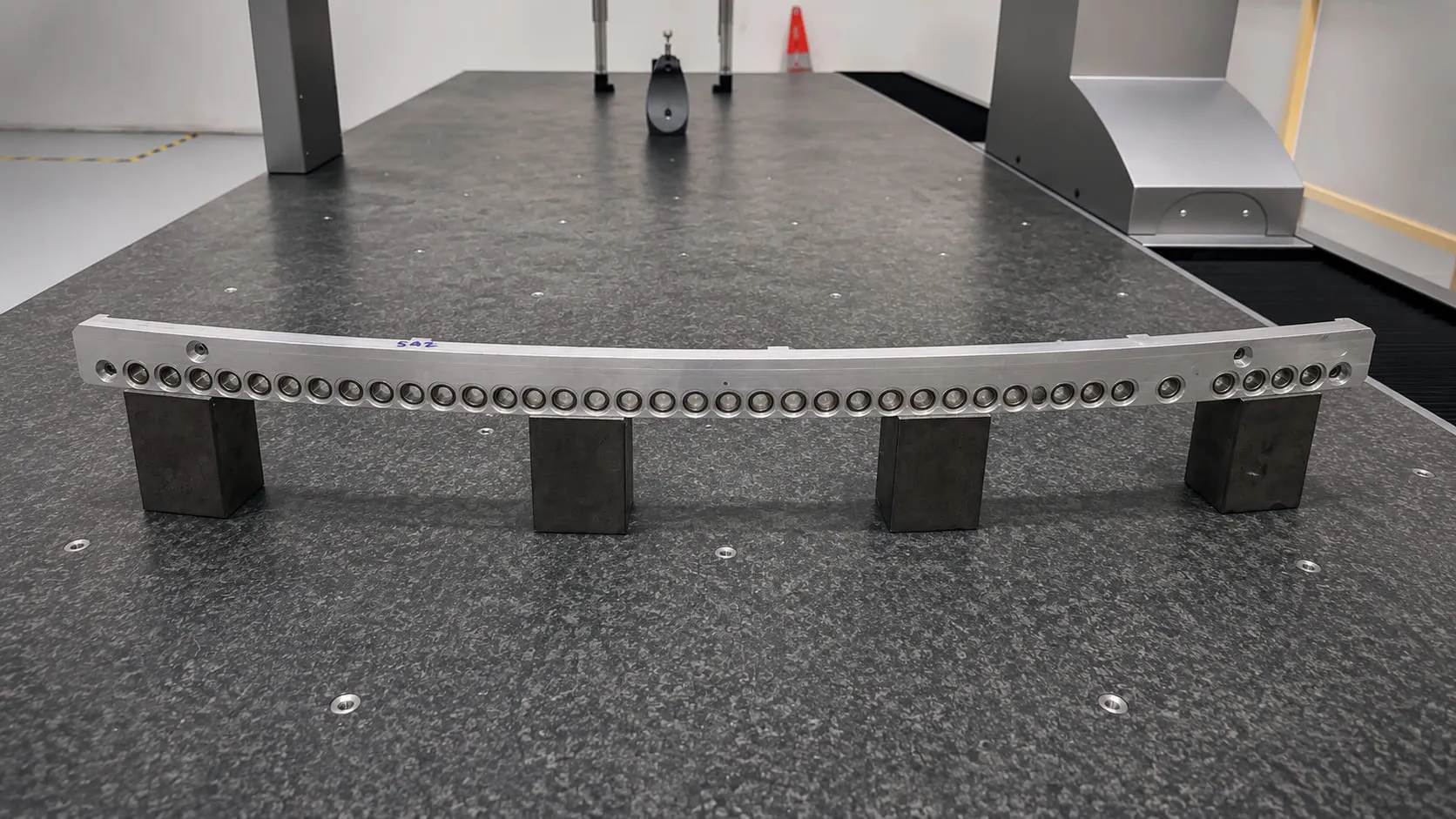

Drill Frame 24.3 (Lower)
Drill Frame 24.3 (Lower). Material: AL 6061 T651. Size: 723 x 40 x 18 mm.

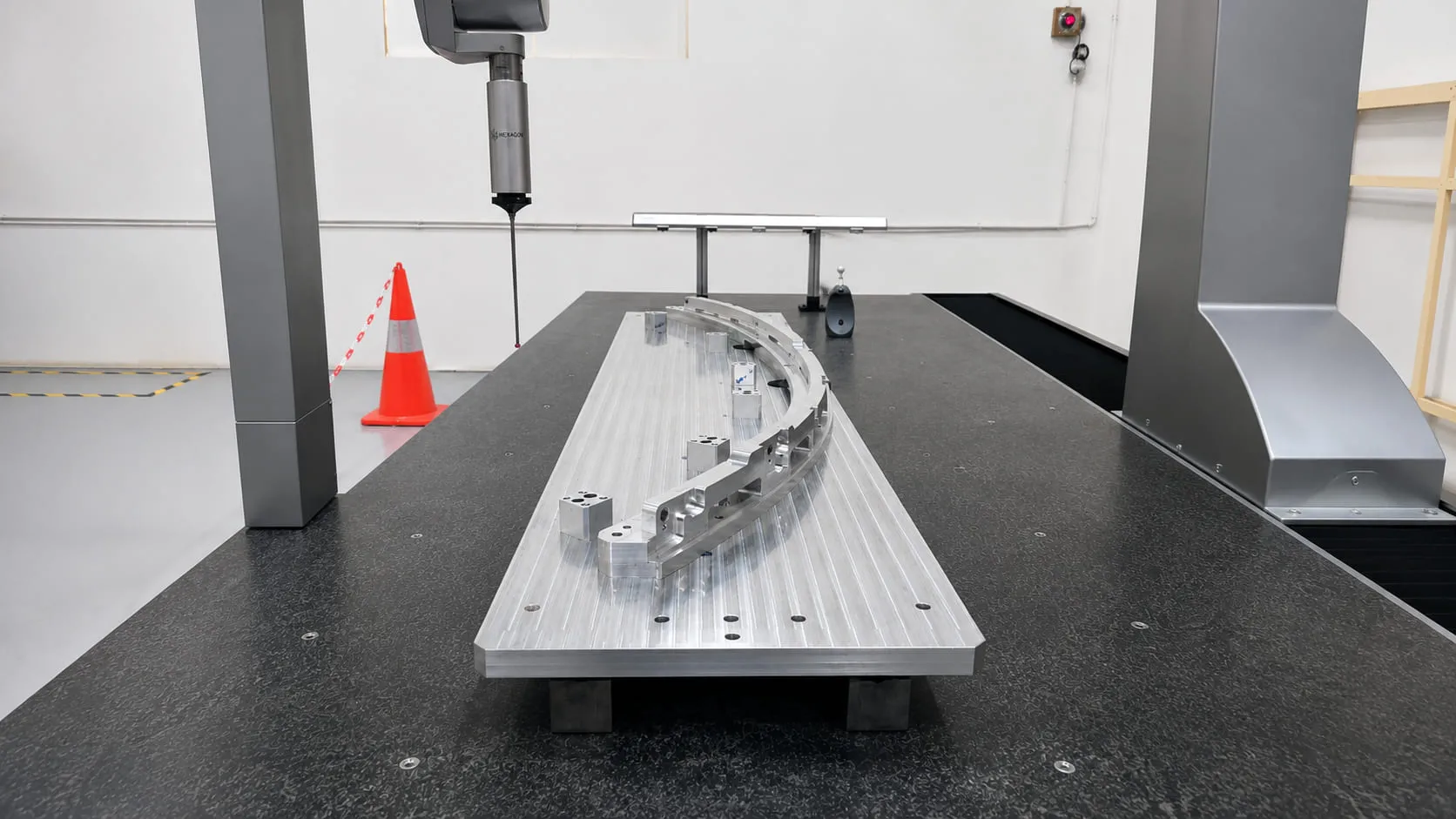

Drilling Jig For Engine Fan Cowl
Drilling Jig for Engine Fan Cowl. Material: AL 6061 T651. Size: Arc length 1800 mm.

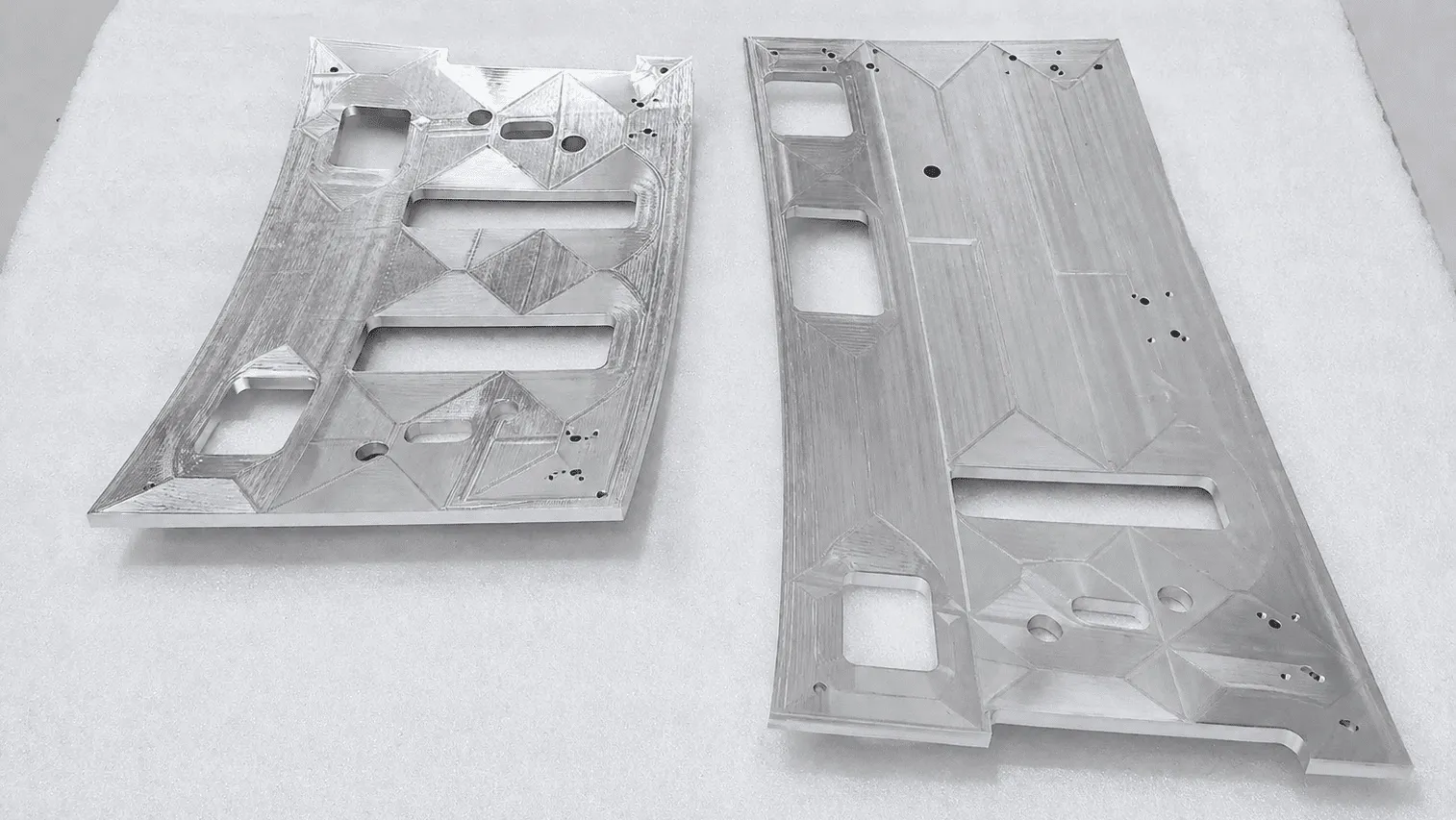

Drilling Template For Rear Fuselage
Drilling Template for Rear Fuselage. Material: AL 6061 T6. Size: 600 x 325 x 70 mm.

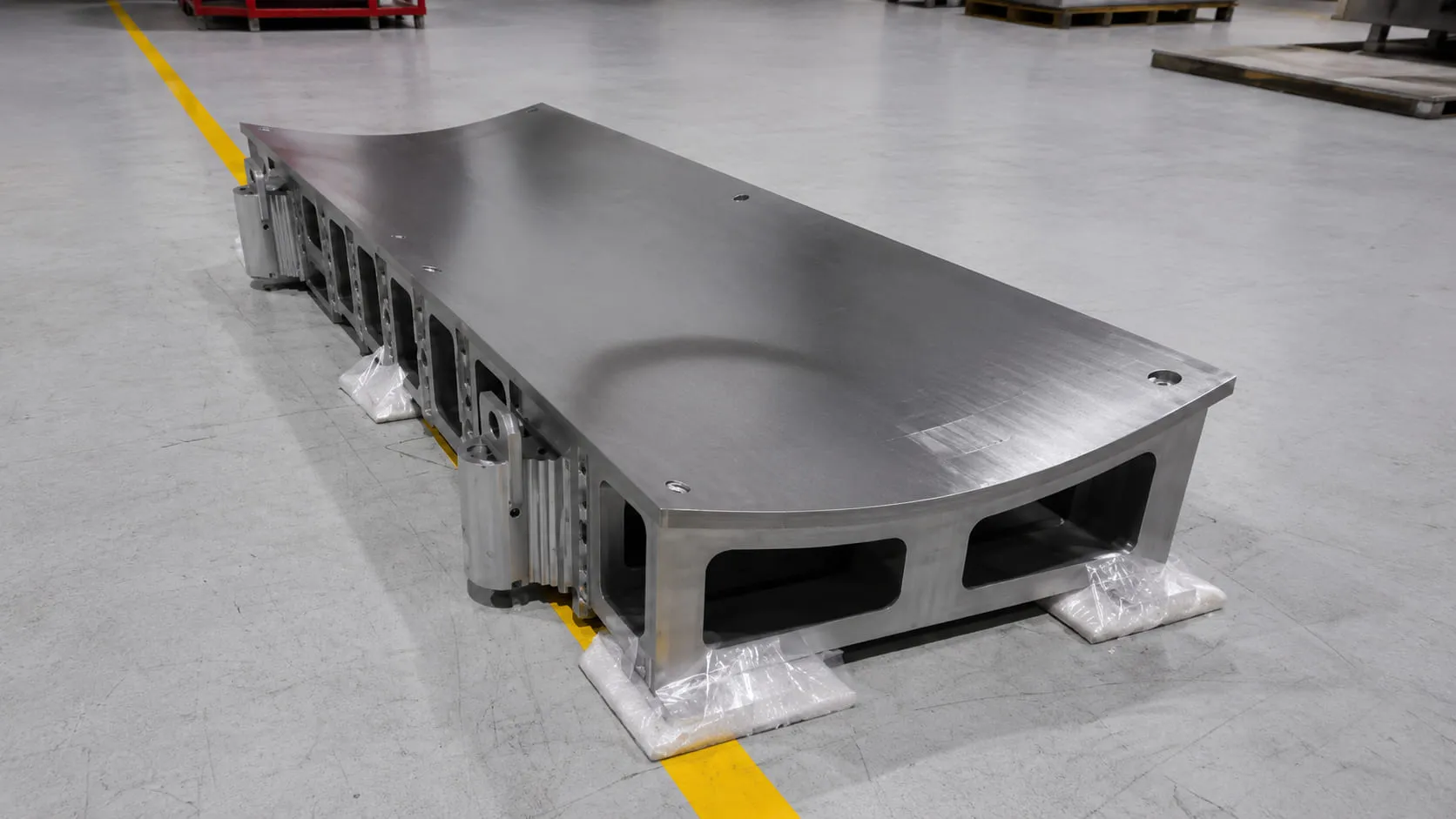

Layup Tool For Composites
Layup Tool for Composites. Material: INVAR. Size: 2900 x 900 x 300 mm.

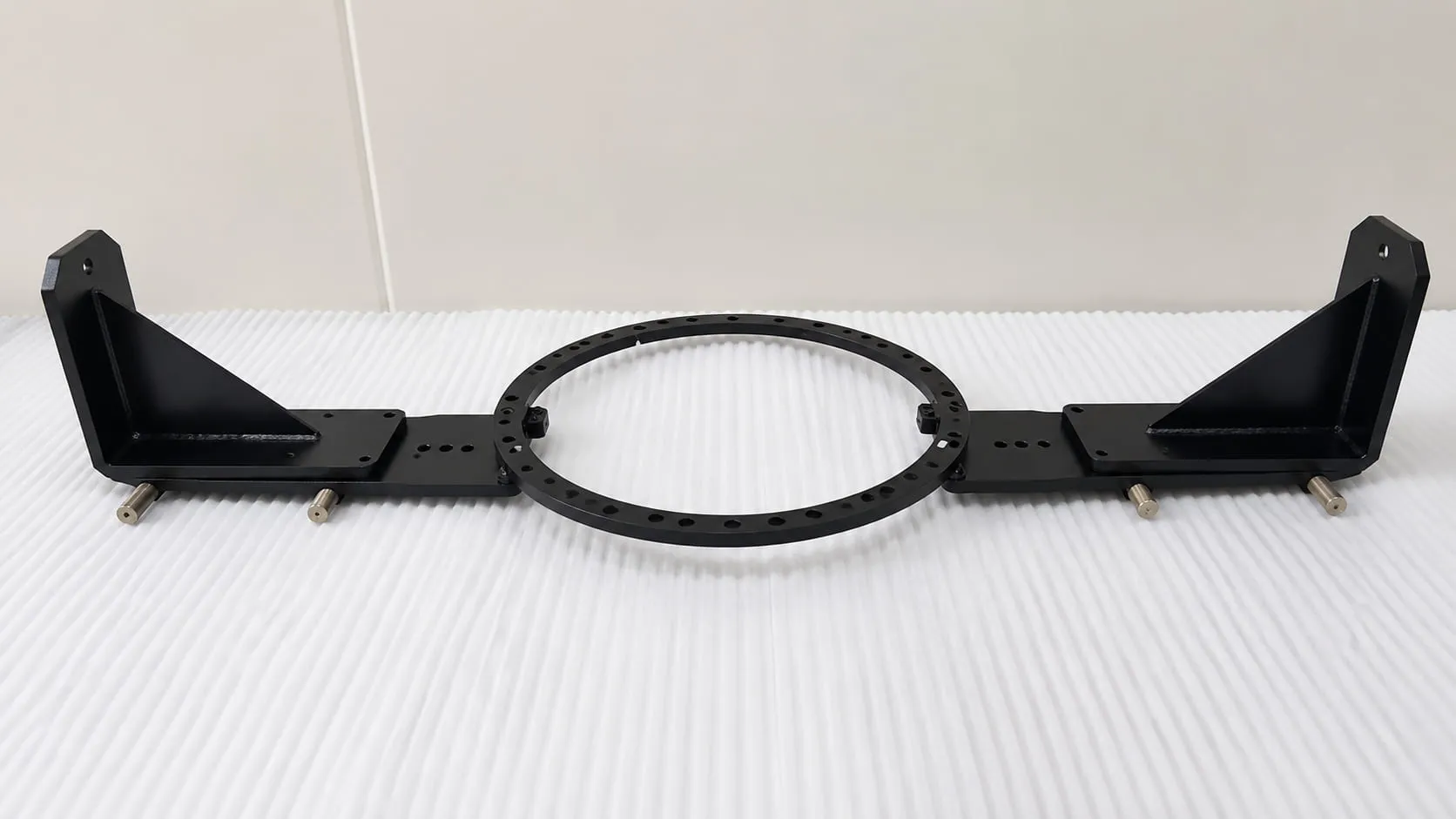

Aero Engine Circular Ring Jig With Locating Arms
Precision-machined circular ring jig mounted between two angled support blocks. Bushed hole ring provides an accurate locating reference for round aerostructure sections.

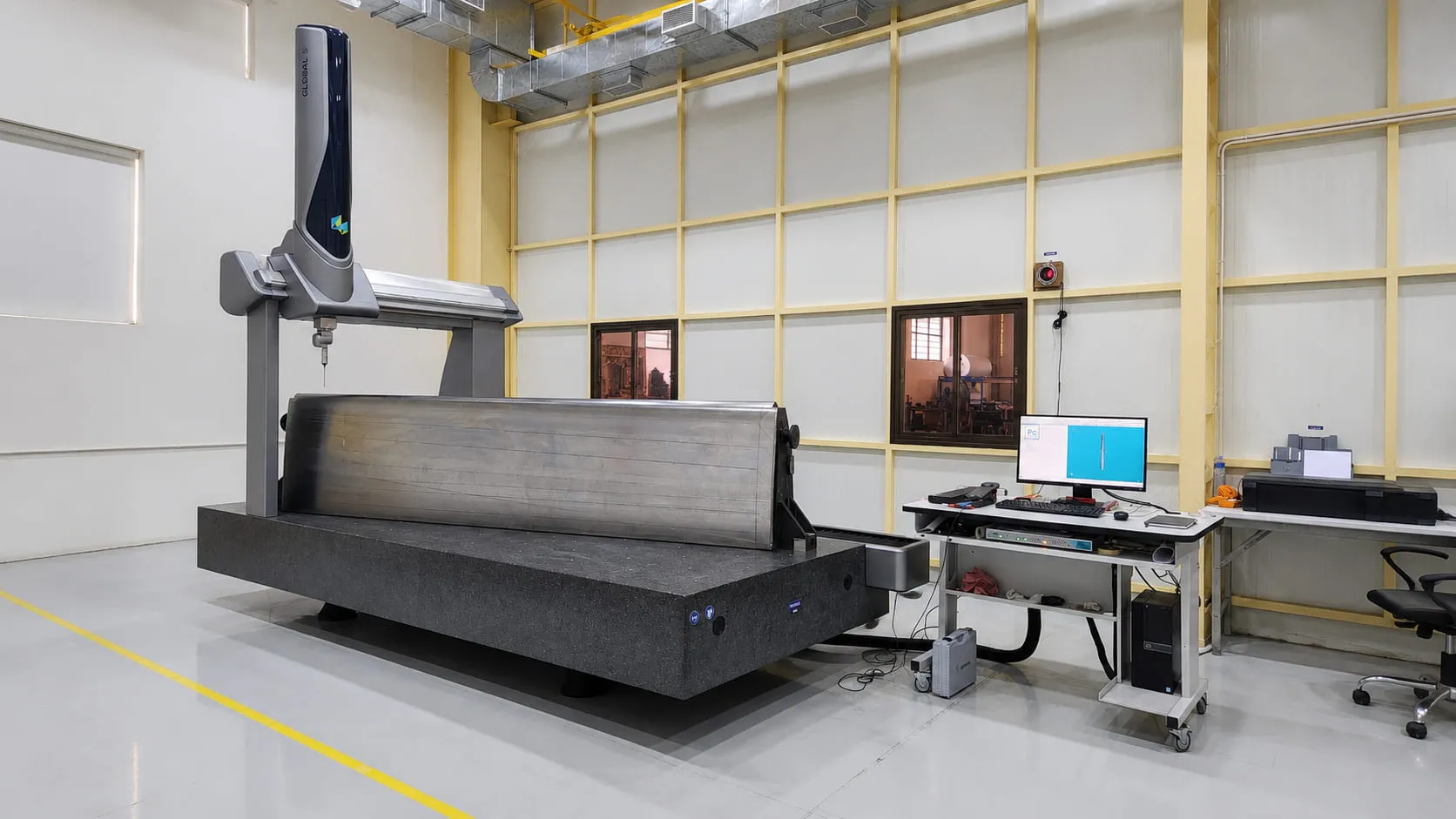

Large Stretch Form Die On CMM Table
Stretch Form Die / Tool set up beside a large CMM arm for surface verification. Material: Casting FG300 CrMo. Scope: supply of stretch form die up to 3500 mm size, including casting, machining, painting, brought-out parts and assembly.

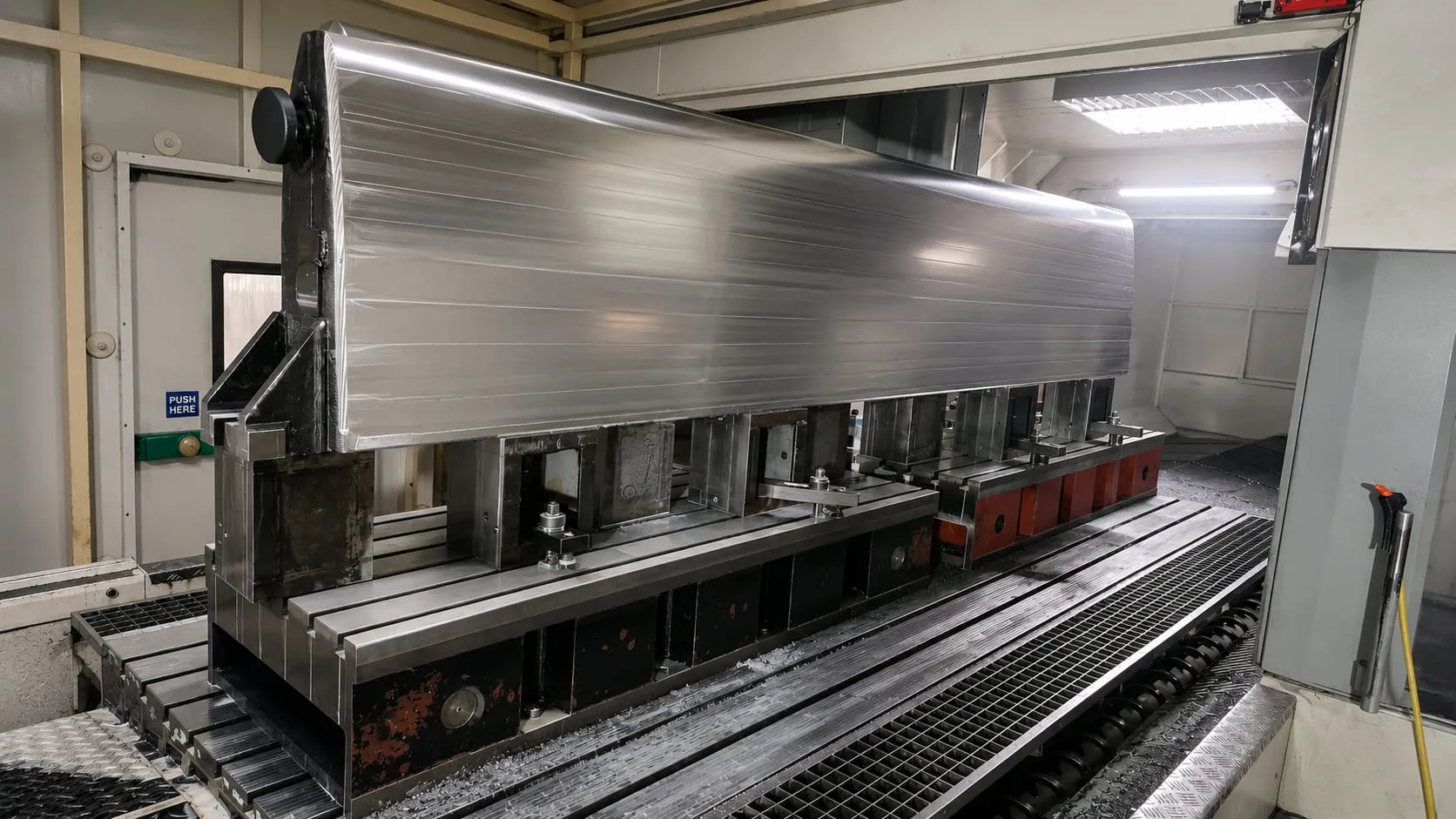

Stretch Form Die On 5-Axis Machining Centre
Stretch Form Die / Tool being finish-machined on a large gantry machining centre. Material: Casting FG300 CrMo. Scope: supply of stretch form die up to 3500 mm size, including casting, machining, painting, brought-out parts and assembly.
Hydroturbine Parts

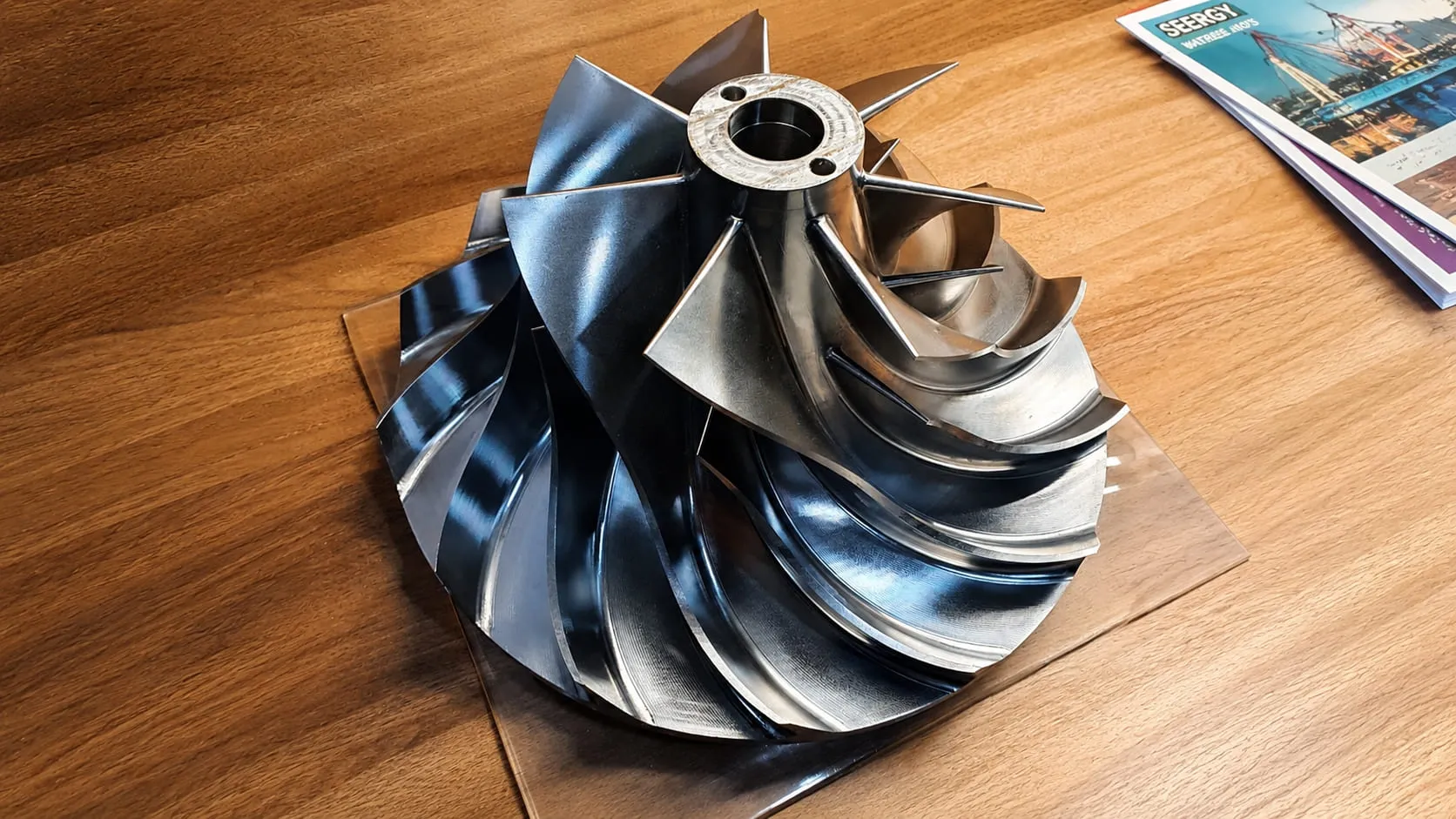

Impeller
Finished impeller with a full set of sweeping curved vanes machined from solid. Size: approx. dia. 400 x 350 mm.

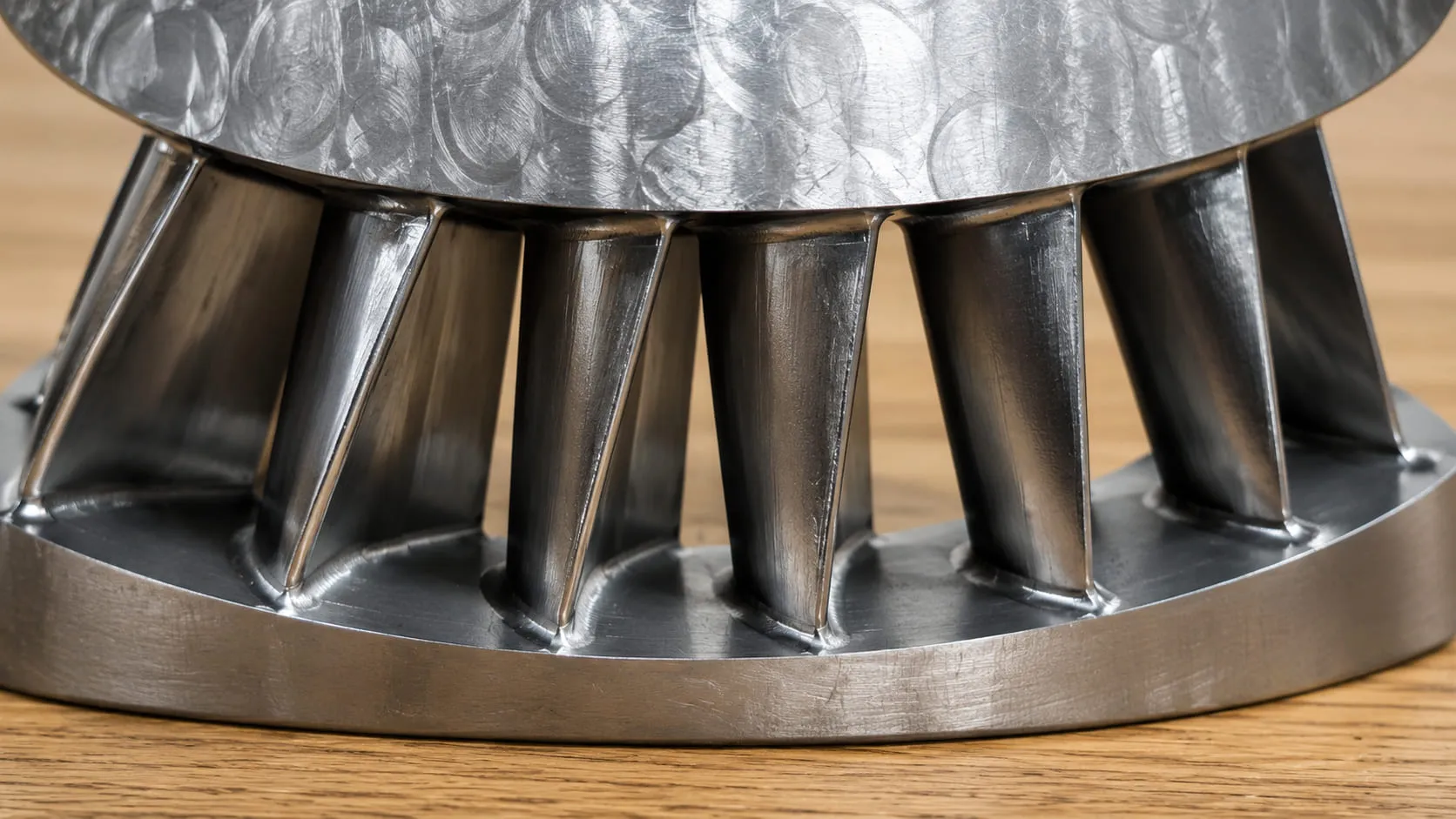

Close-Up Of Impeller Vane Roots
Close-up view of the machined vane roots and hub transition on an impeller. Size: approx. dia. 400 x 350 mm.

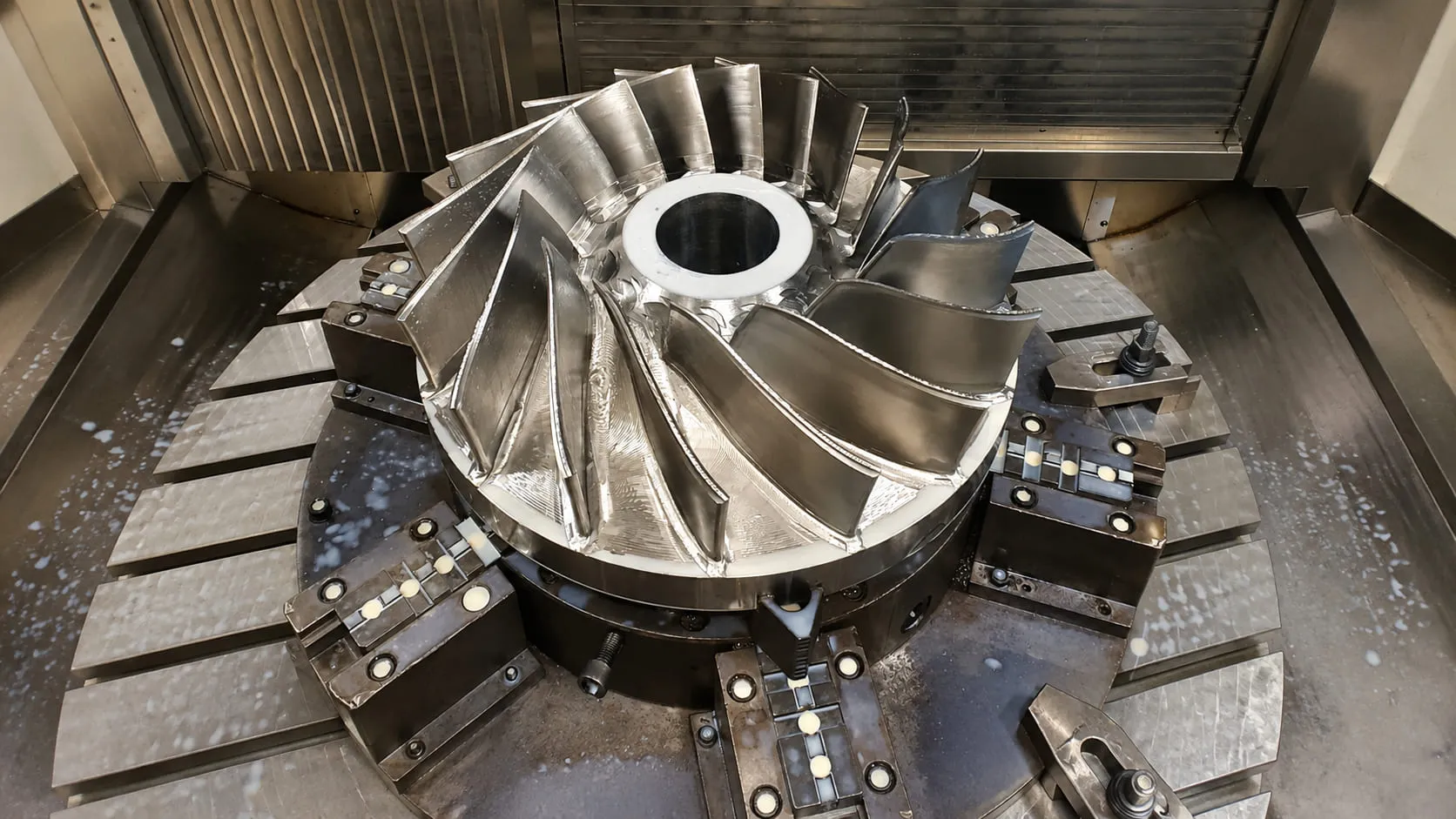

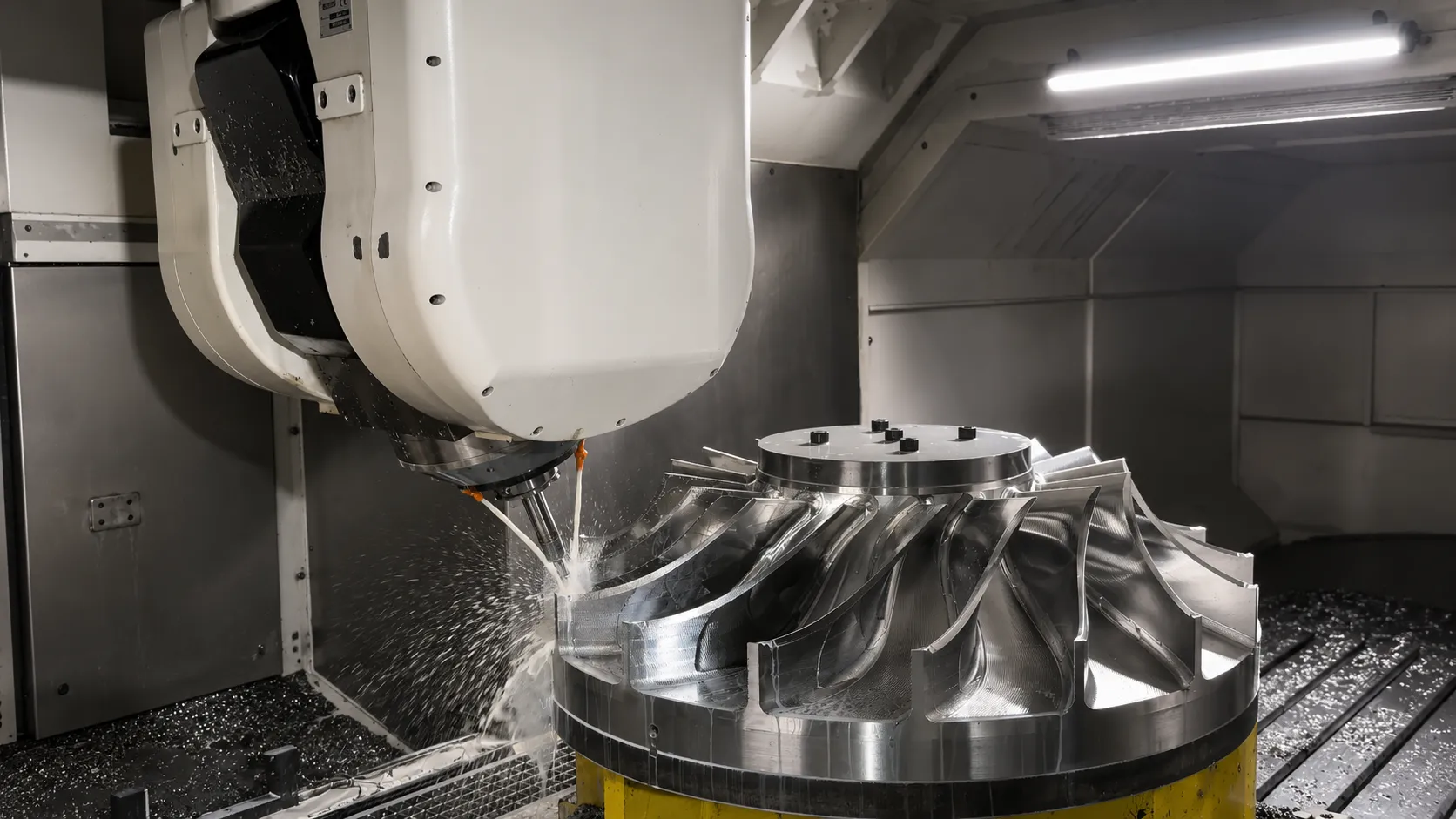

Impeller On 5-Axis Machining Centre
Impeller under coolant flood on a 5-axis machining centre. Size: approx. dia. 400 x 350 mm.
Impeller Mounted For Machining
Impeller mounted and clamped on a rotary table for vane machining. Size: approx. dia. 400 x 350 mm.
Other Critical Components

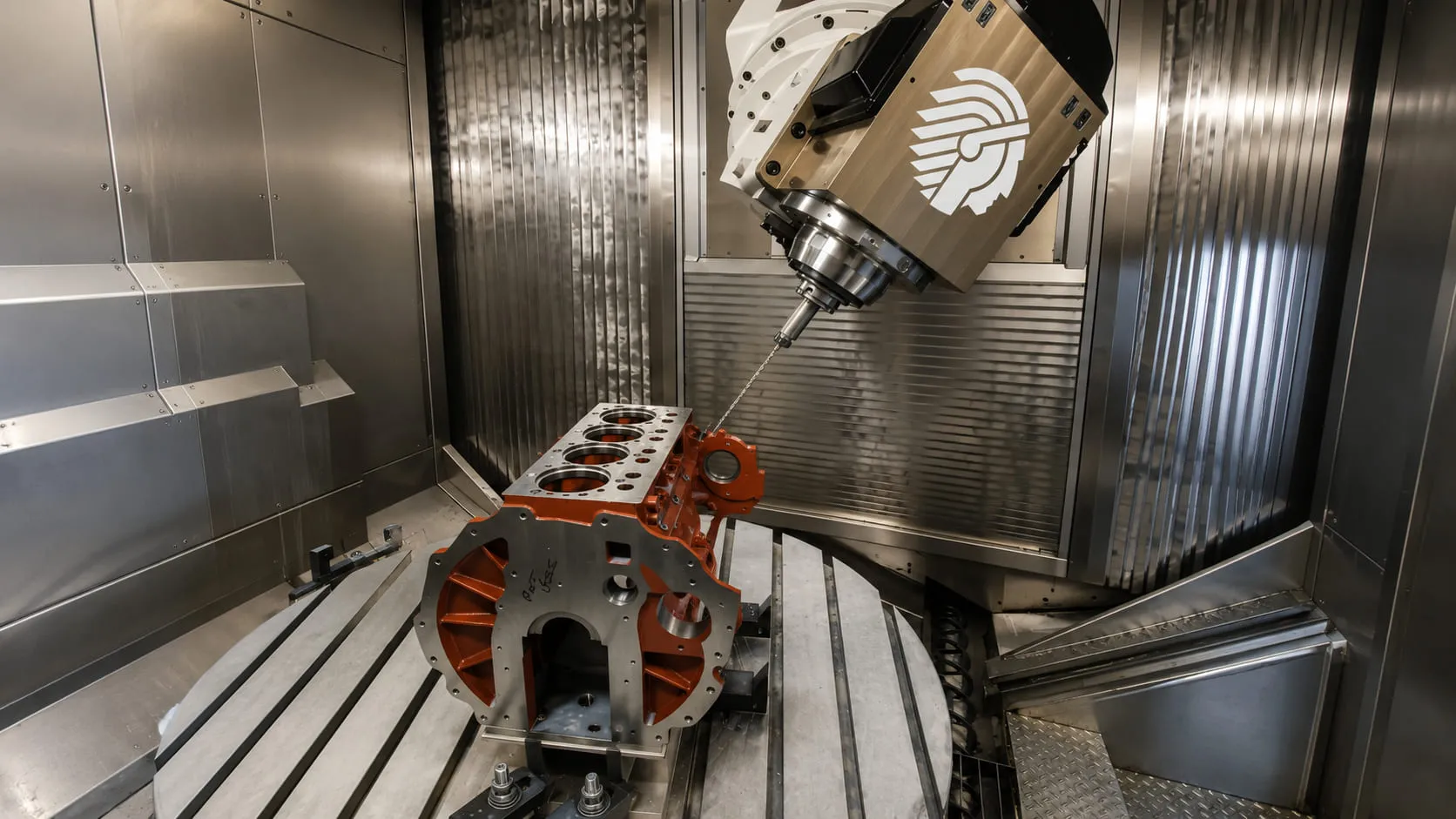

Engine Block Machined On 5-Axis Centre
Cast engine block under 5-axis machining with automatic tool-holder indexing. Precision boring and face-milling performed on a critical structural casting.

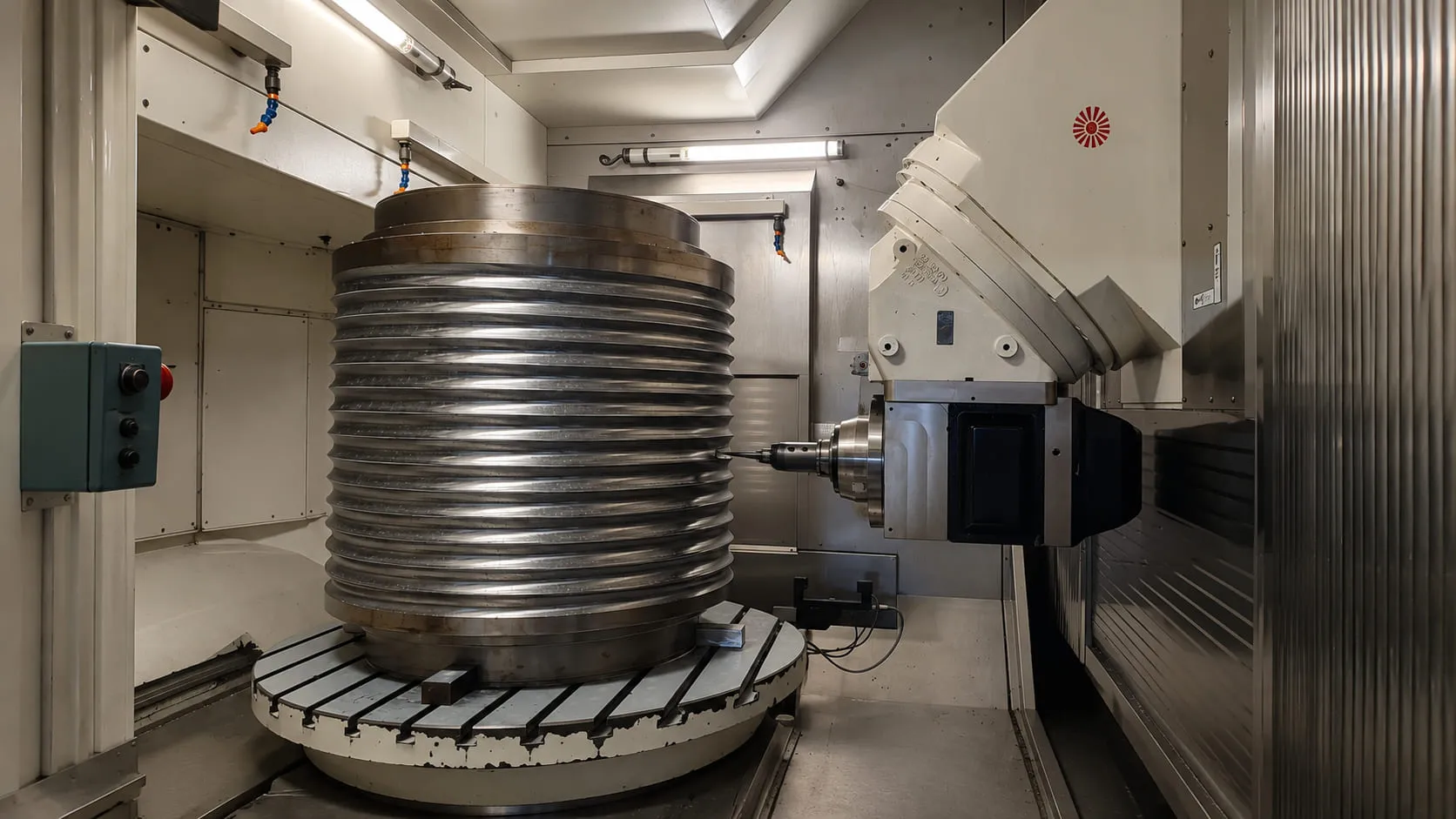

Large Finned Cylindrical Component In Machining
Large finned cylindrical component being bored on a horizontal machining centre. Heavy-duty single-setup machining of a big-diameter critical part.

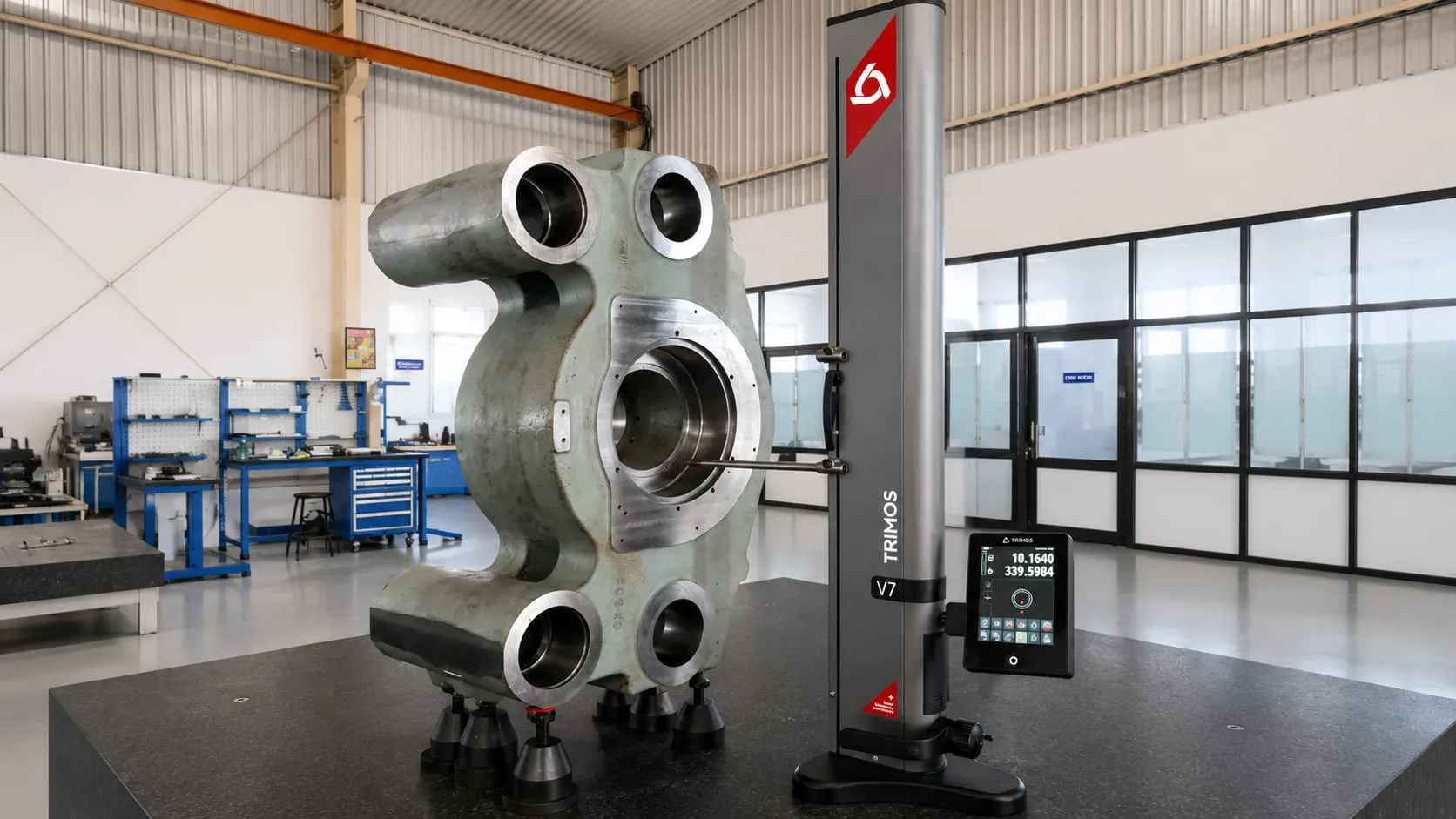

Multi-Bore Housing Component Beside Height Gauge
Multi-bore critical housing component set beside a Trimos digital height gauge. Bore diameters and datums measured to confirm dimensional conformance.

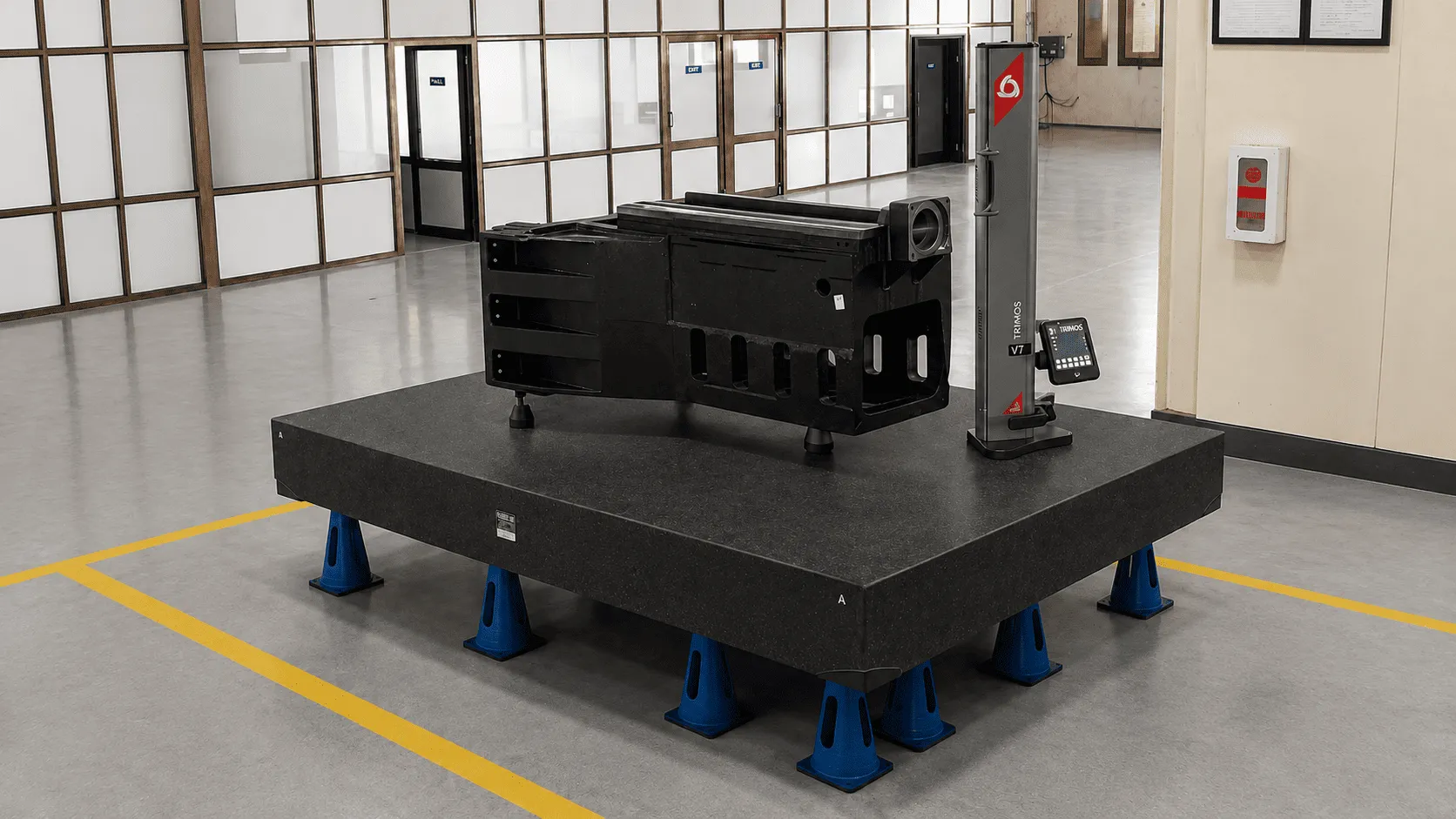

VMC Column On Granite Inspection Table
VMC Column undergoing height-gauge inspection on a granite surface table. Critical machined surfaces, mounting faces, and precision features checked for dimensional accuracy and quality compliance.
