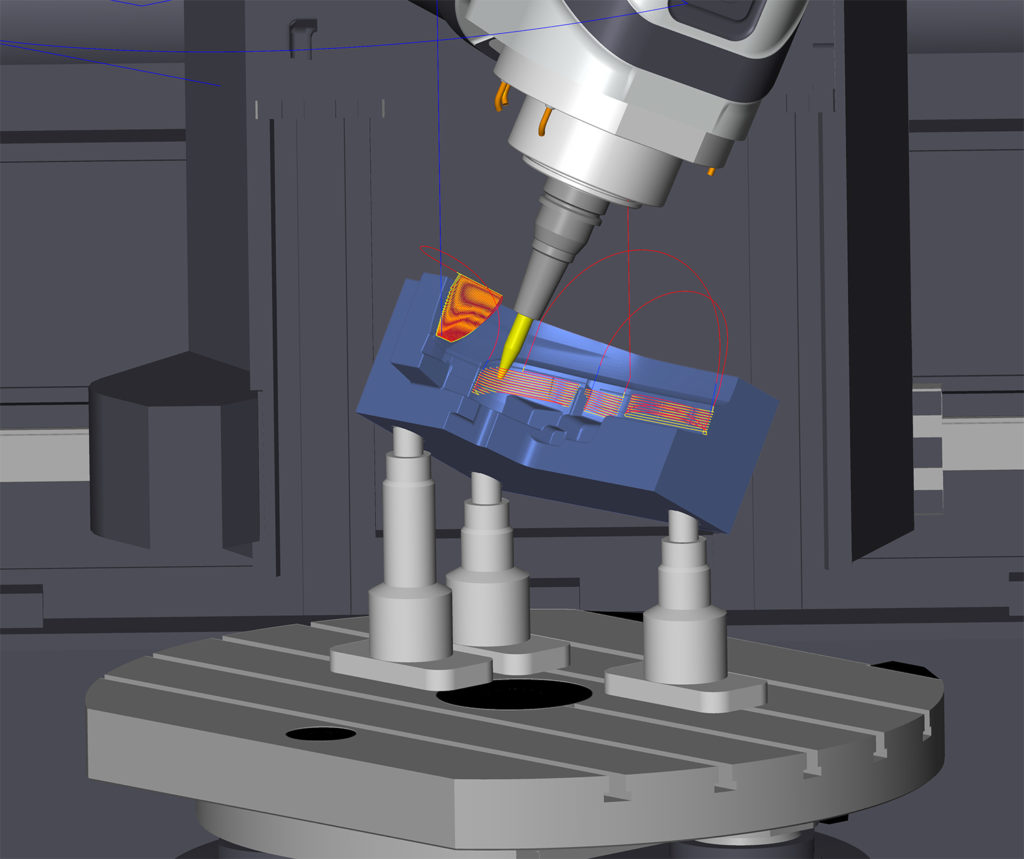

Ultra High Precision Machining

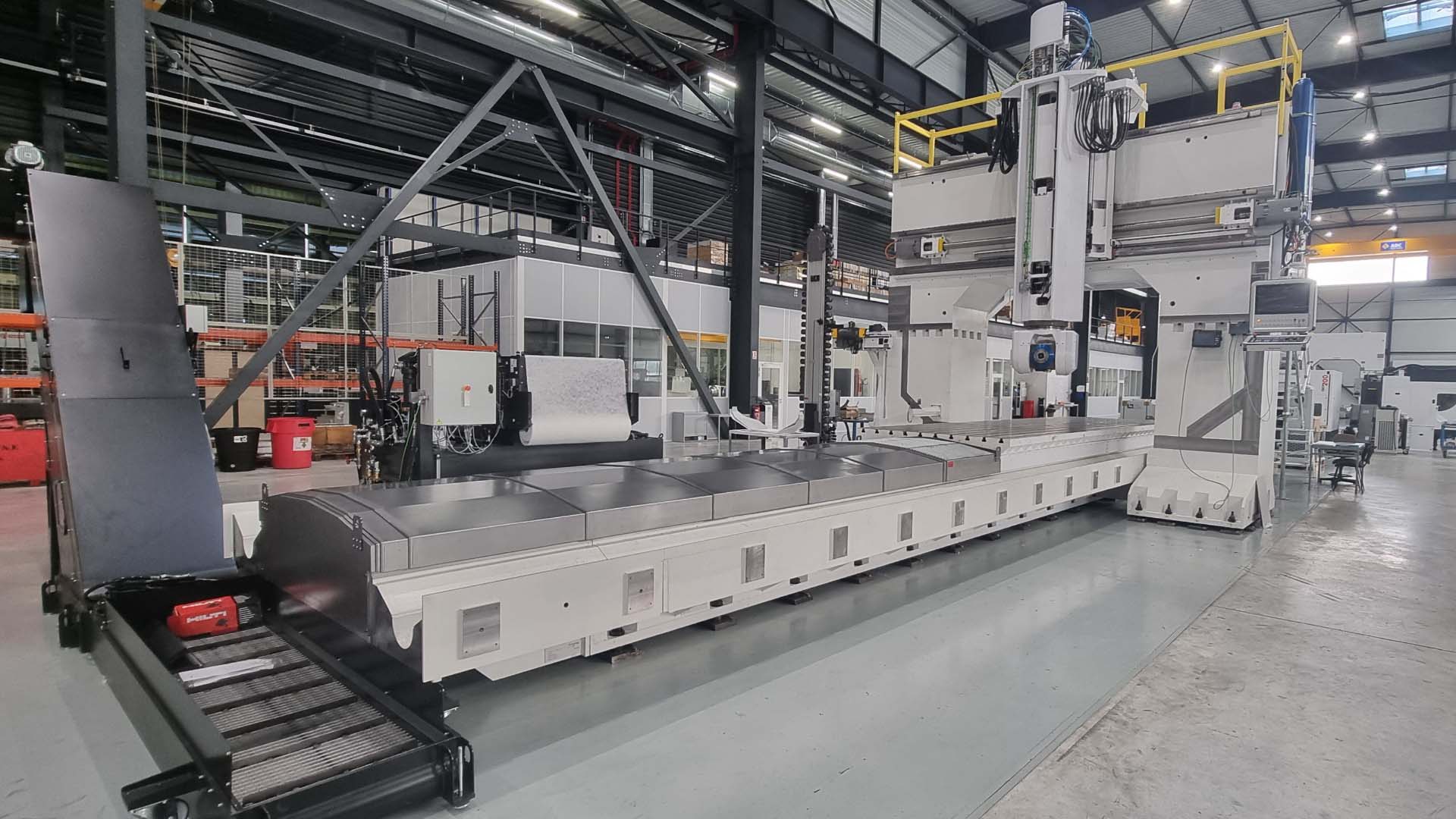

KX-300XL

Ultra Precision 5 Axis Maching center

Make: Huron Graffenstaden - France

• • Large Table size: 6500 x 2000 mm
• • High Load carrying: up to 15000 kg
• • Rotary/Tilting head (B/C Axis) ±105° / ±190° with repeatability of less than 4 Arc sec.
• • Feasibility of High Height job with strokes: 7600 x 3600 x 1500 mm
• • Inbuilt live thermal compensation of machine structure
• • Auto inspection probes for Tool and Work piece
• • Extra high through coolant pressure of 70 Bar
• • Built in High torque motors for Spindle, B & C axes.

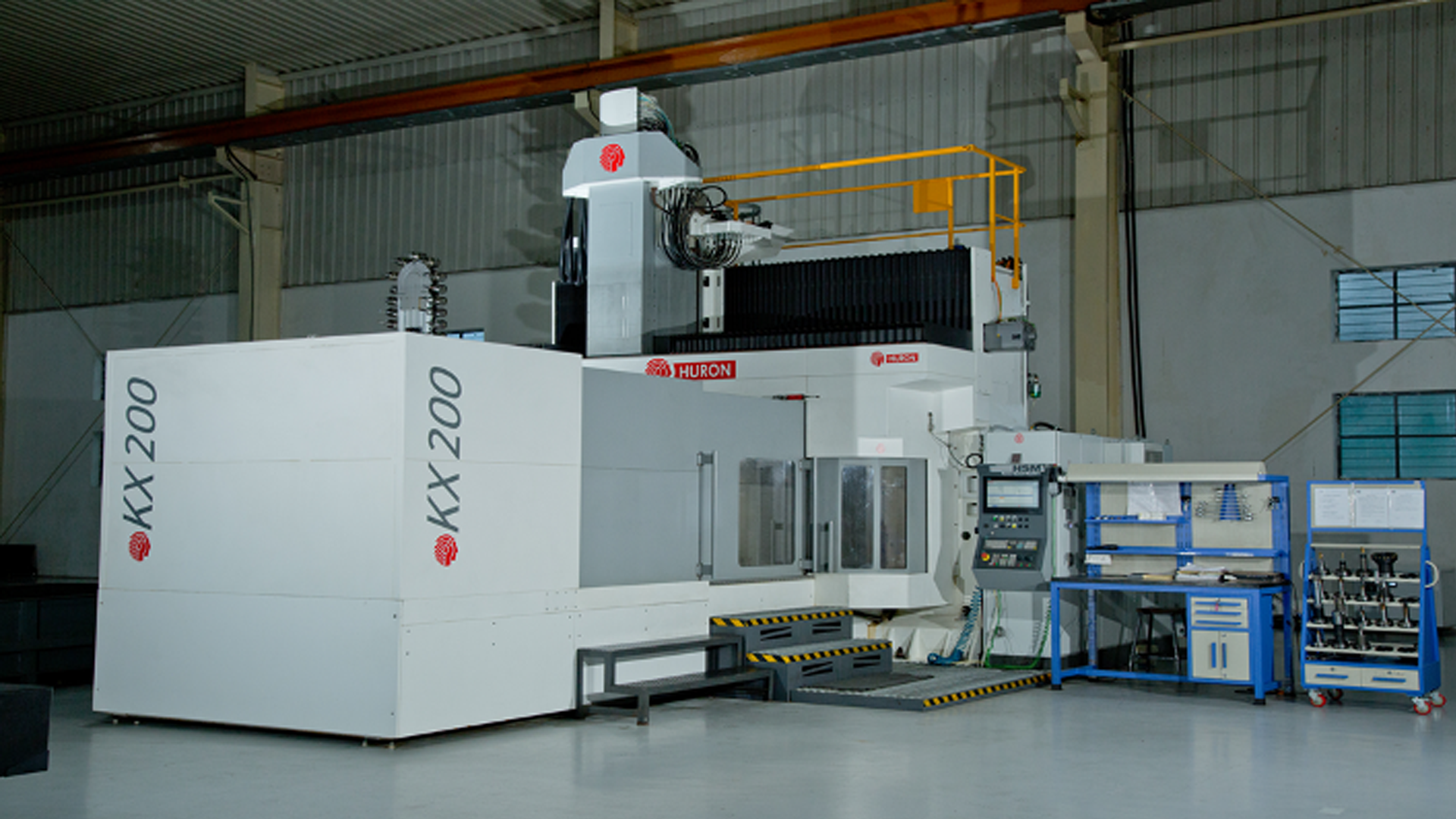

KX 200

Ultra Precision Multi Axis Machining Center

Make: Huron Graffenstaden - France

• • Large Table size: 3500 x 1250 mm
• • High Load carrying: up to 9000 kg
• • Rotary/Tilting head (B/C Axis) +95° / 190° with repeatability of less than 4 Arc sec.
• • Feasibility of High Height job with strokes: 3300 x 2300 x 1000 mm
• • Inbuilt live thermal compensation of machine structure
• • Auto inspection probes for Tool and Work piece
• • Extra high through coolant pressure of 70 Bar
• • Built in High torque motors for Spindle, B & C axes.

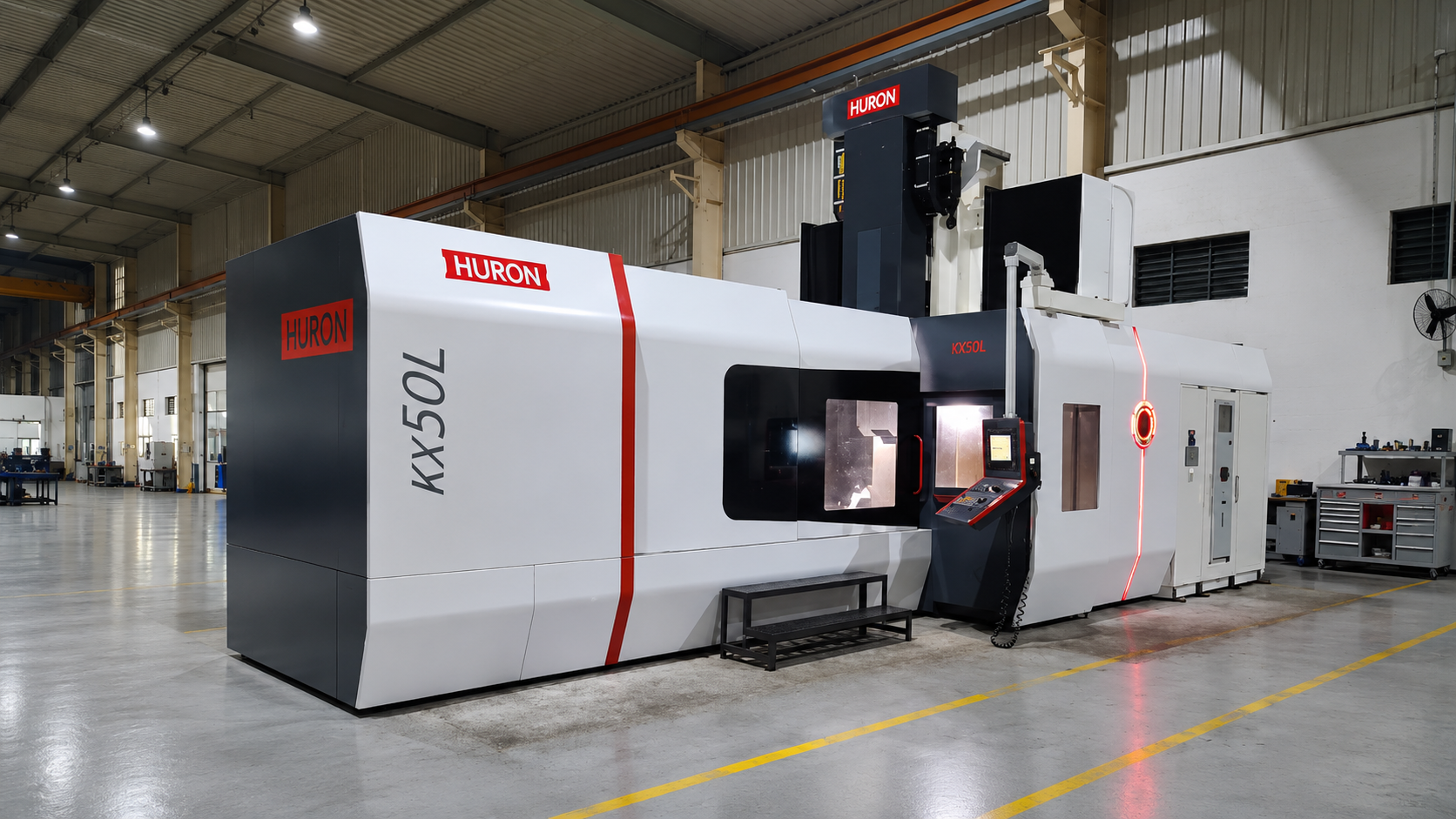

KX50L

Ultra Precision 5 Axis Machining Cente

Make: Huron Graffenstaden - France

• • Large Table size: 3300 x 1250 mm
• • High Load carrying: up to 6000 kg
• • Feasibility of High Height job with strokes: 3300 x 2300 x 1000 mm
• • Inbuilt live thermal compensation of machine structure
• • Auto inspection probes for Tool and Work piece
• • Extra high through coolant pressure of 70 Bar
• • Built in High torque motors for Spindle, B & C axes.

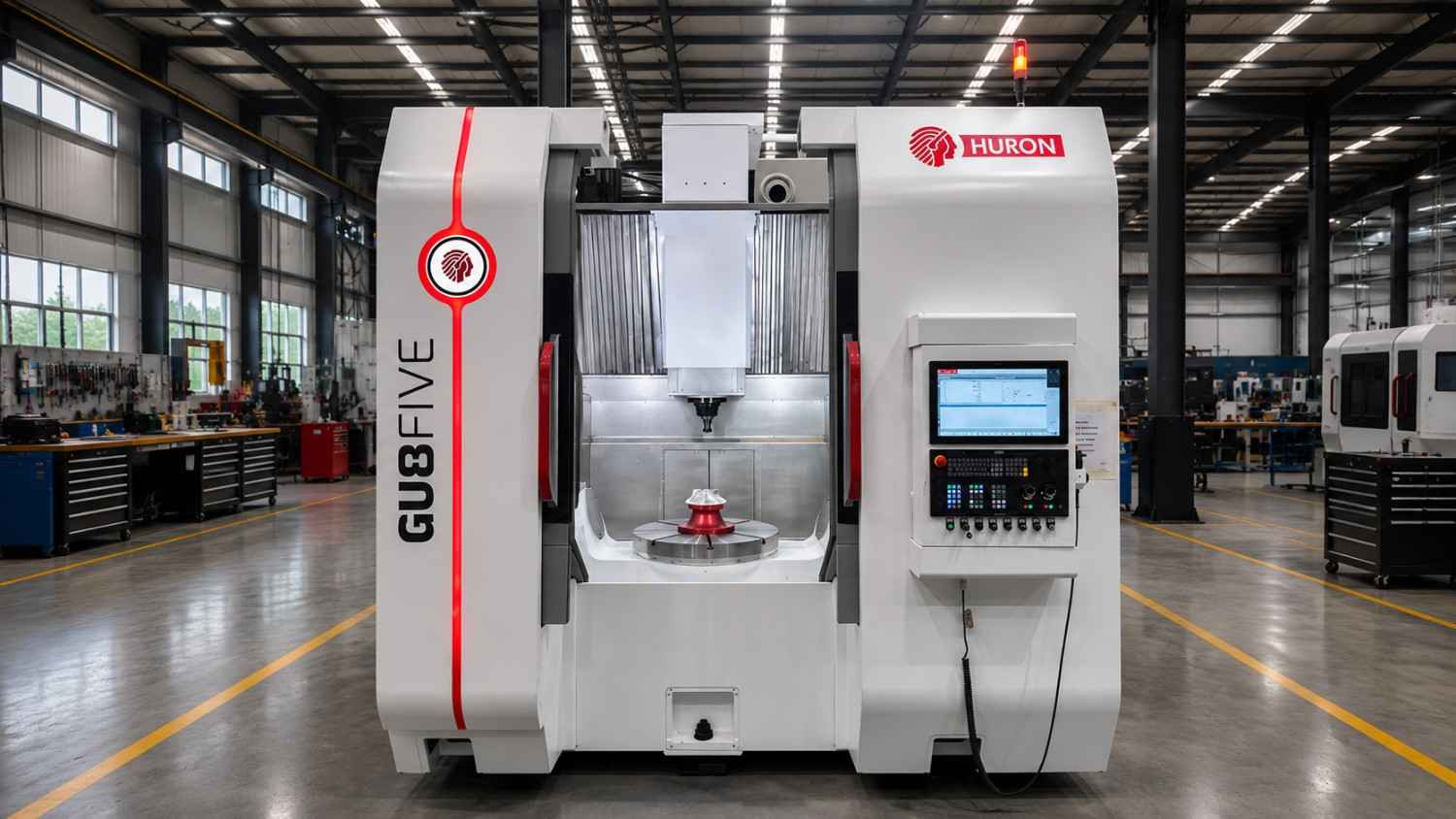

GU8 Five

Ultra Precision 5 Axis Machining Cente

Make: Huron Graffenstaden - France

• • Table size: Dia. 800 mm
• • Load carrying: up to 1000 kg
• • Rotary/Tilting head (A/C Axis) ±120° / 360° with repeatability of less than 4 Arc sec.
• • Feasibility of High Height job with strokes: 1000 x 1100 x 650 mm
• • Inbuilt live thermal compensation of machine structure
• • Auto inspection probes for Tool and Work piece
• • Extra high through coolant pressure of 30 Bar
• • Built in High torque motors for Spindle, A & C axes.

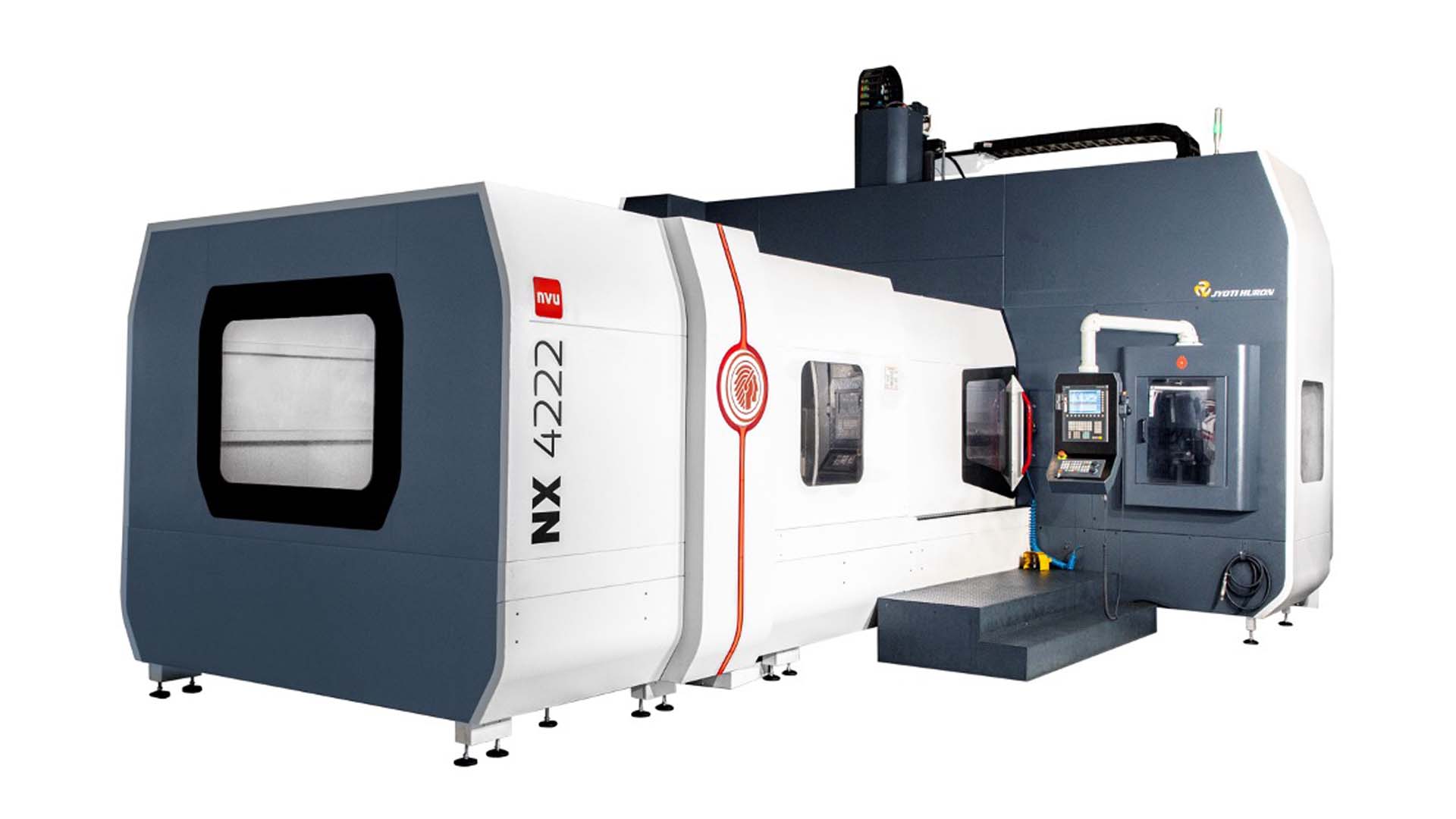

NX 4222

Heavy Duty Double Column Vertical Machining Center

Make: Huron Graffenstaden - France

• • Working table size: 3500 x 2000 mm
• • Wide distance between columns with strokes of 4200 x 2760 x 800 mm
• • High load carrying capacity of 10000 kg
• • Automatic Right Angle head for 5-face machining capacity
• • RAM type Z movement for better tool approach in complex shapes

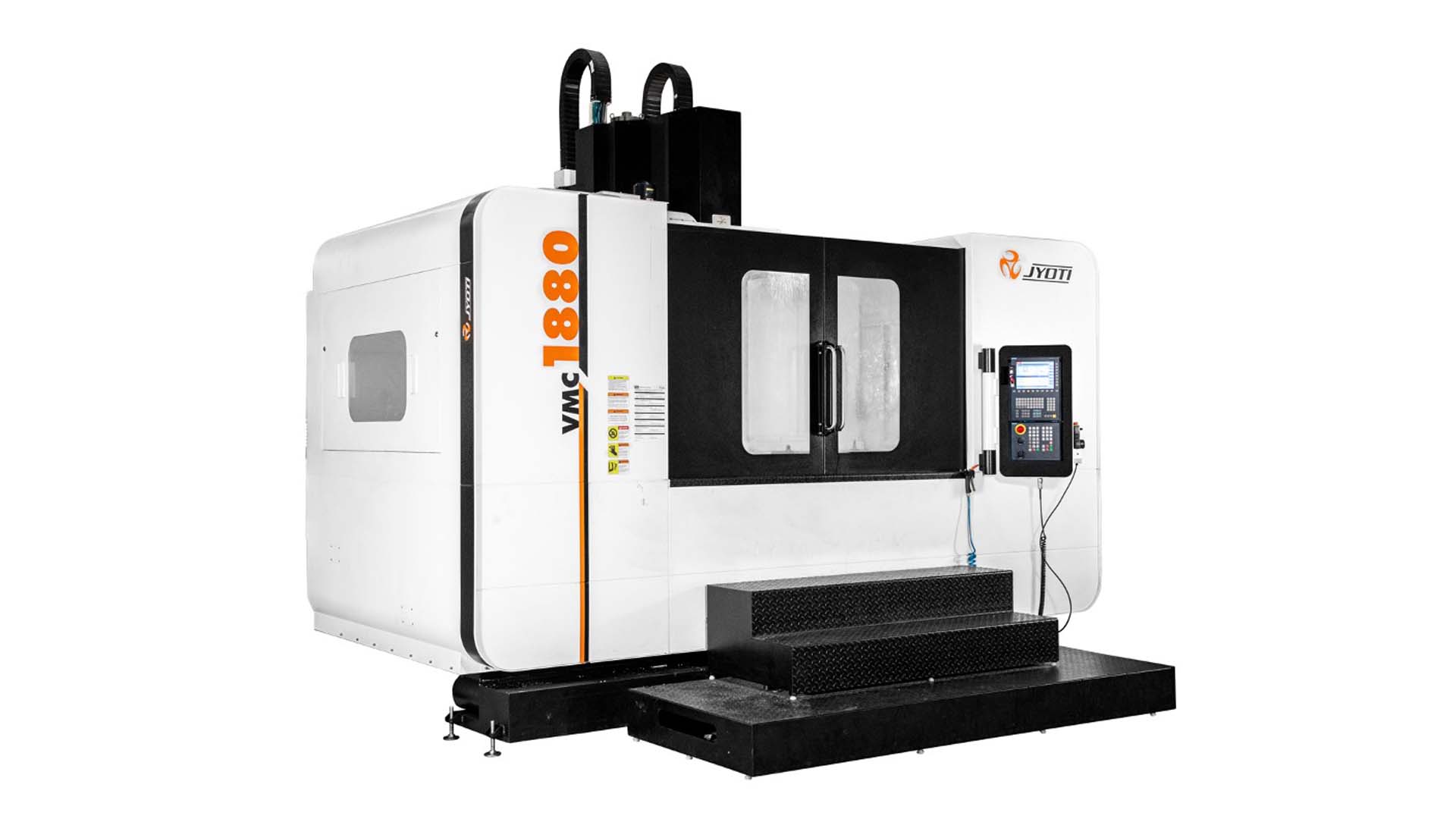

VMC 1880

Heavy Duty Double Column Vertical Machining Center

• • Working table size of 2000 x 810 mm to accommodate all mid-sized components
• • Axes stroke of 1810 / 810 / 810 mm
• • High speed spindle of 15000 rpm (HSK 63 taper)
• • High rigidity structure with Roller LM for hard material machining
• • Load carrying capacity of 2500 kg

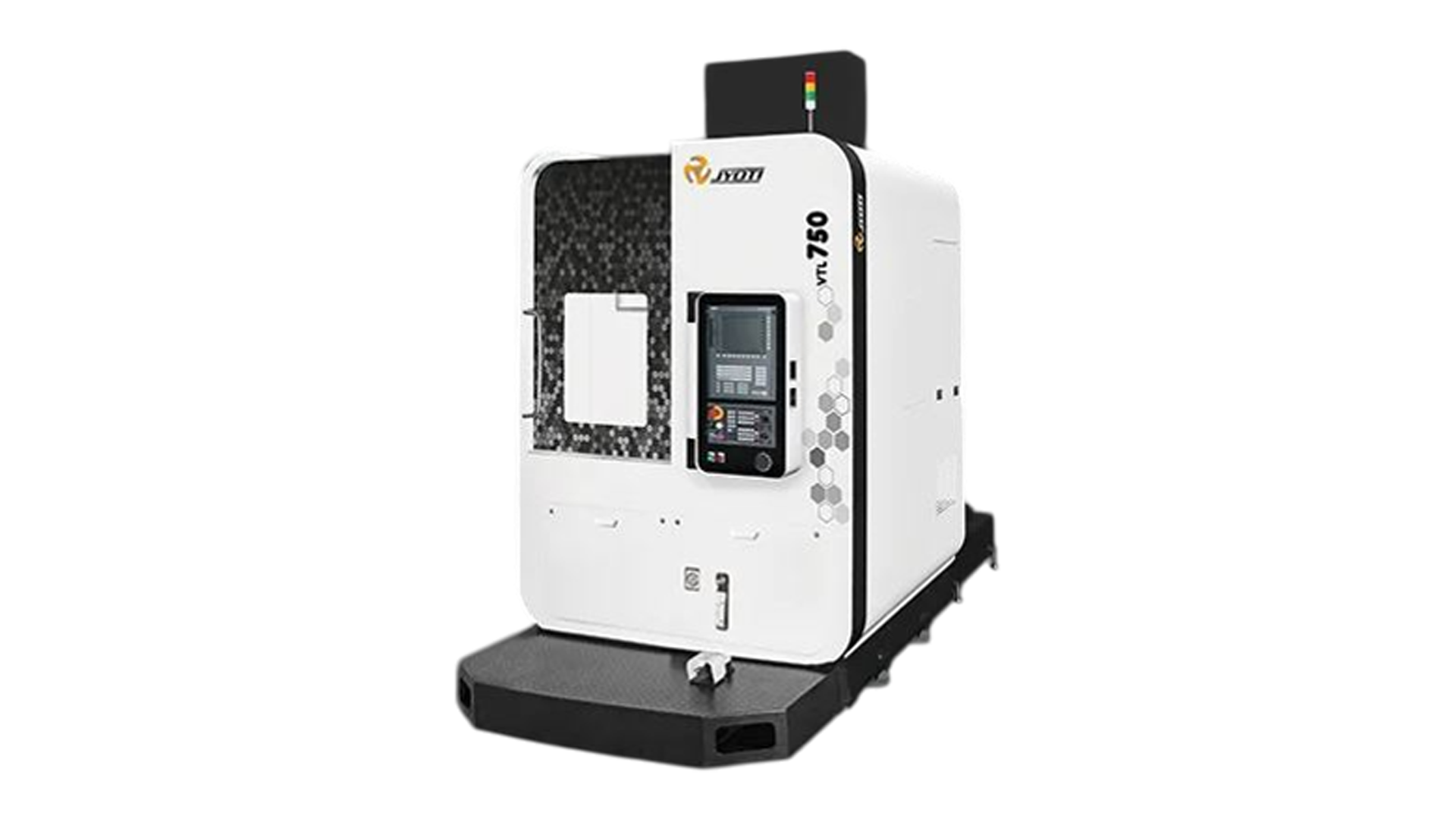

VTL Machine

• • Max Turning Dia – 750 mm
• • Max Turning Length – 750 mm
• • Max Spindle Speed – 1200 rpm

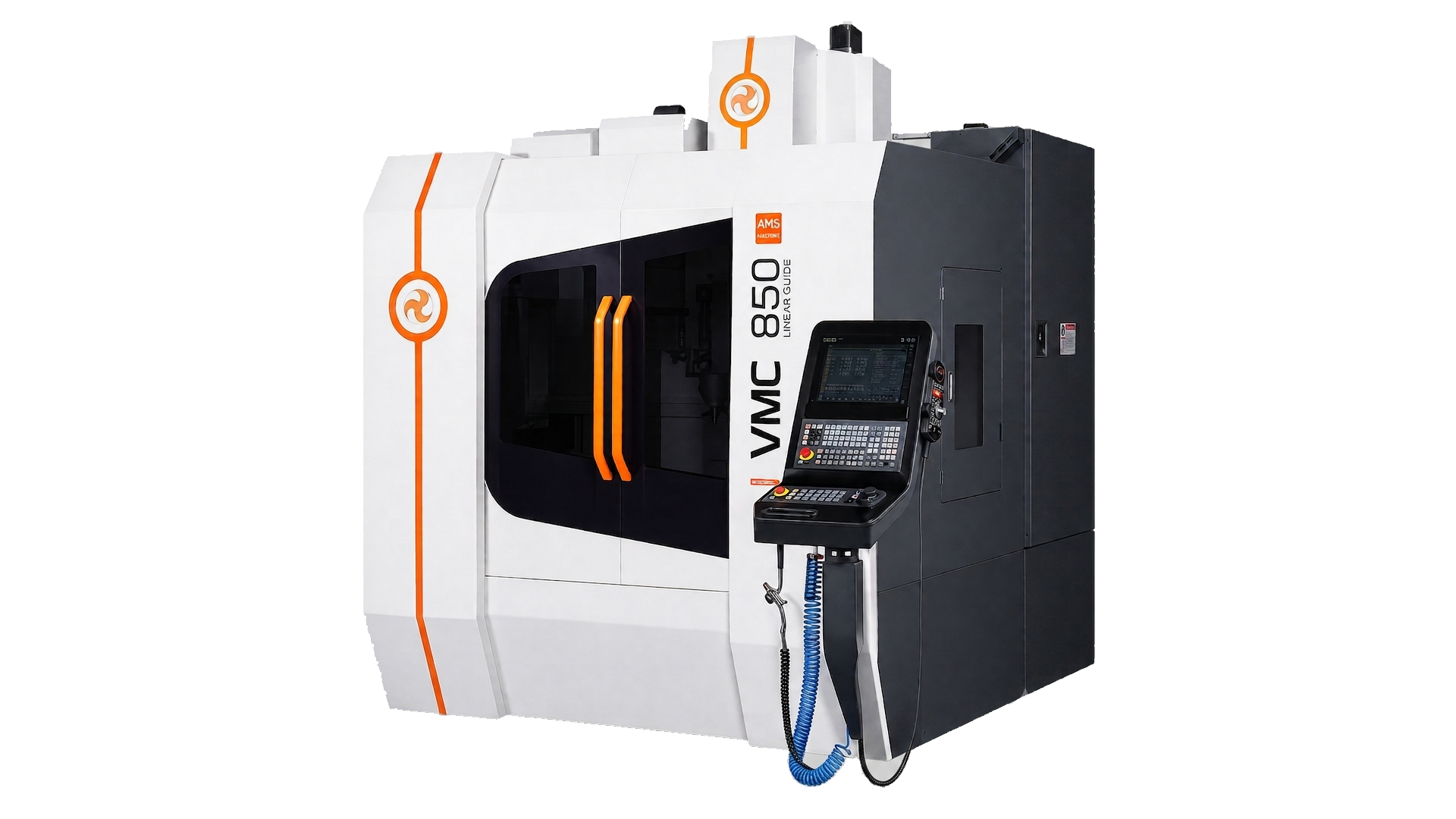

VMC 850

Small Components Machining Capability

• • Working table size of 1000 x 510 mm to accommodate all small sized components
• • Axes stroke of 800 / 500 / 500 mm
• • Load carrying capacity 600 kg
• • High speed spindle of 10000 rpm (BT 40 taper)

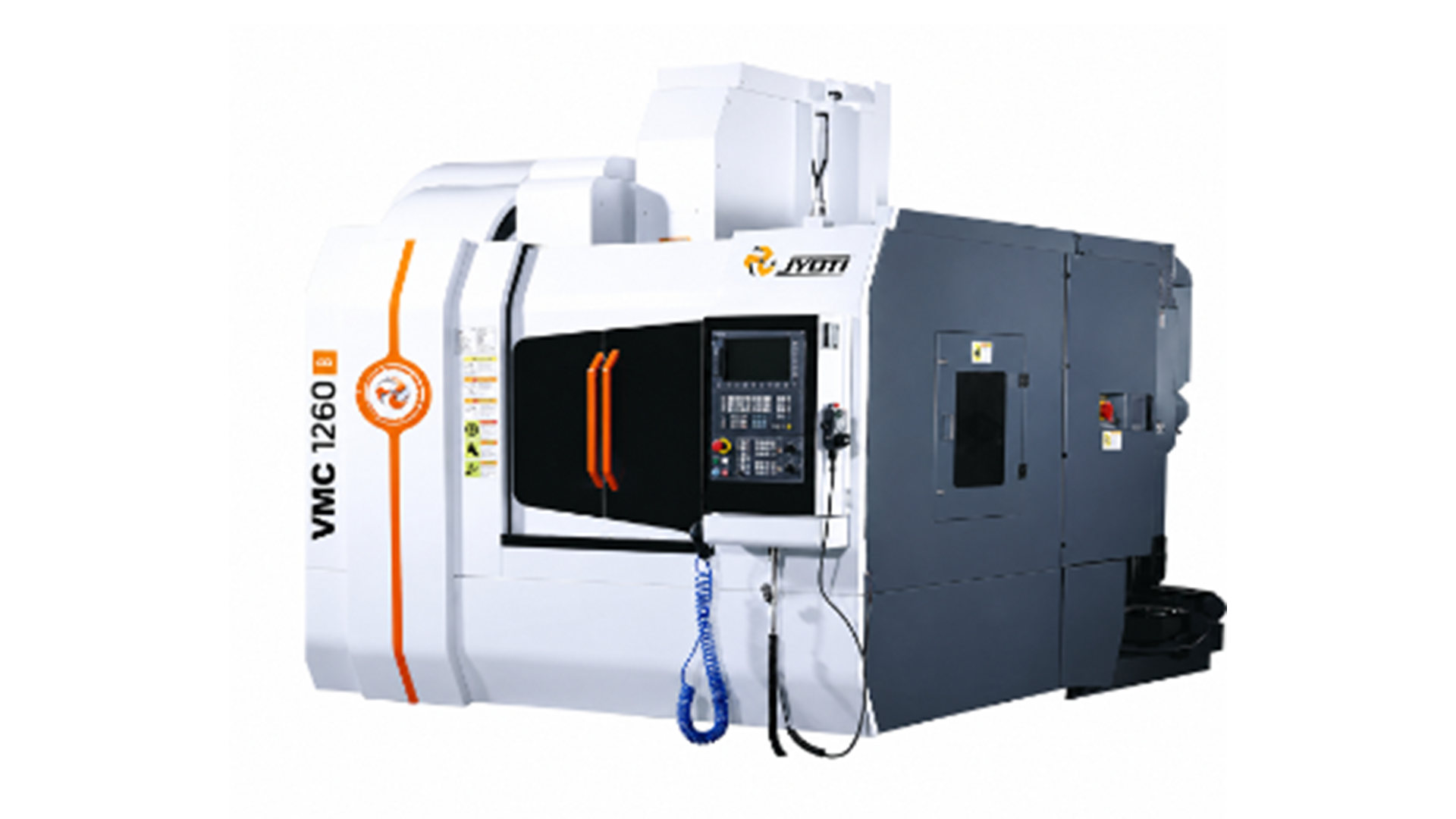

VMC 1260

Small Components Machining Capability

• • Working table size of 1400 x 620 mm to accommodate all small sized components
• • Axes stroke of 1220 / 610 / 610 mm
• • Load carrying capacity 1300 kg
• • High speed spindle of 10000 rpm (BT 40 taper)
• • QTY: 02

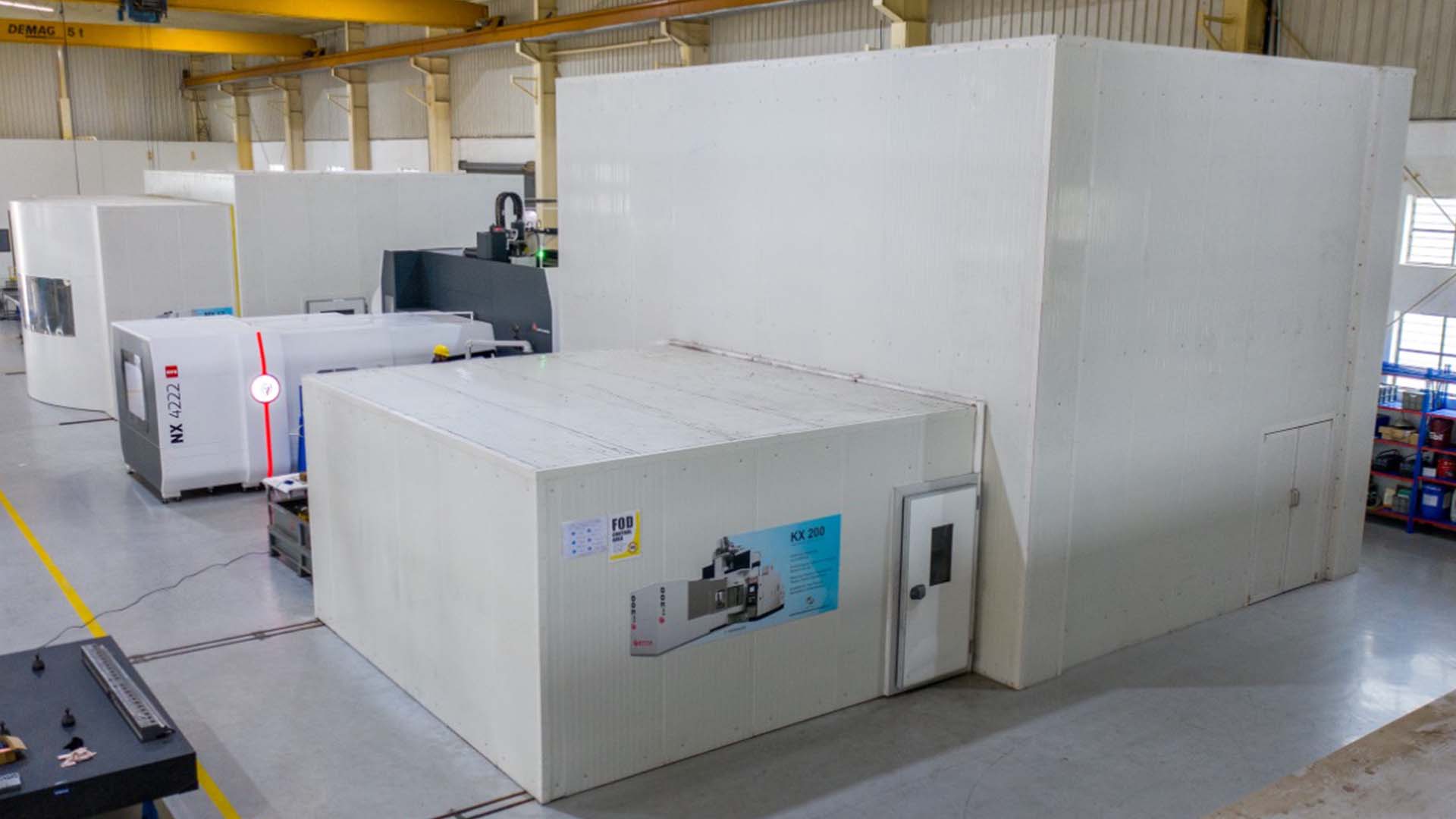

Thermally Stabilized Manufacturing Setup

• • Specialized machines for critical machining are thermally stabilized both internally and externally.
• • Internally: Liquid cooled structure and drive components with inbuilt thermal monitoring and compensation mechanism.
• • Externally: Whole machine is housed in a thermally stabilized enclosure.
• • Ensures highest accuracy.

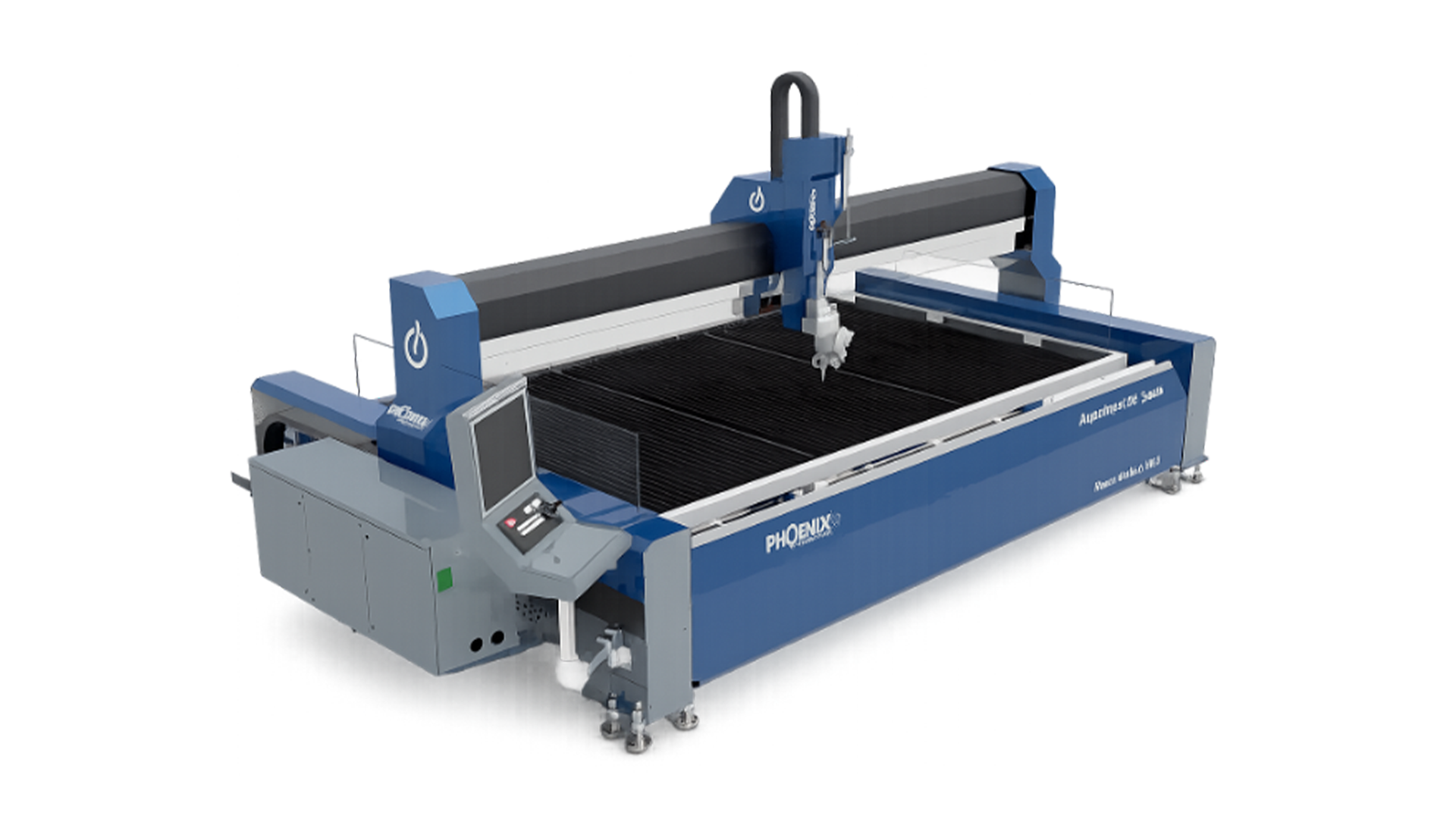

Phoenix Aqua Impel BR-2040

5-Axes CNC Water Jet Cutting Machine

• • Working Bed Load Carrying Capacity: 800 kg/m²
• • 5-Axis Effective Cutting Area: L 4100 mm x W 2100 mm
• • X-Axis Travel (Length): 4500 mm
• • Y-Axis Travel (Width): 2500 mm
• • Z-Axis Travel: 350 mm
• • Auto Bevel Axis: ±55° tilting
• • Rapid Speed X/Y Axis: Max. 20 meters/minute
• • Positioning Accuracy: ±0.2 mm/meter
• • Repeatability: ±0.2 mm/meter

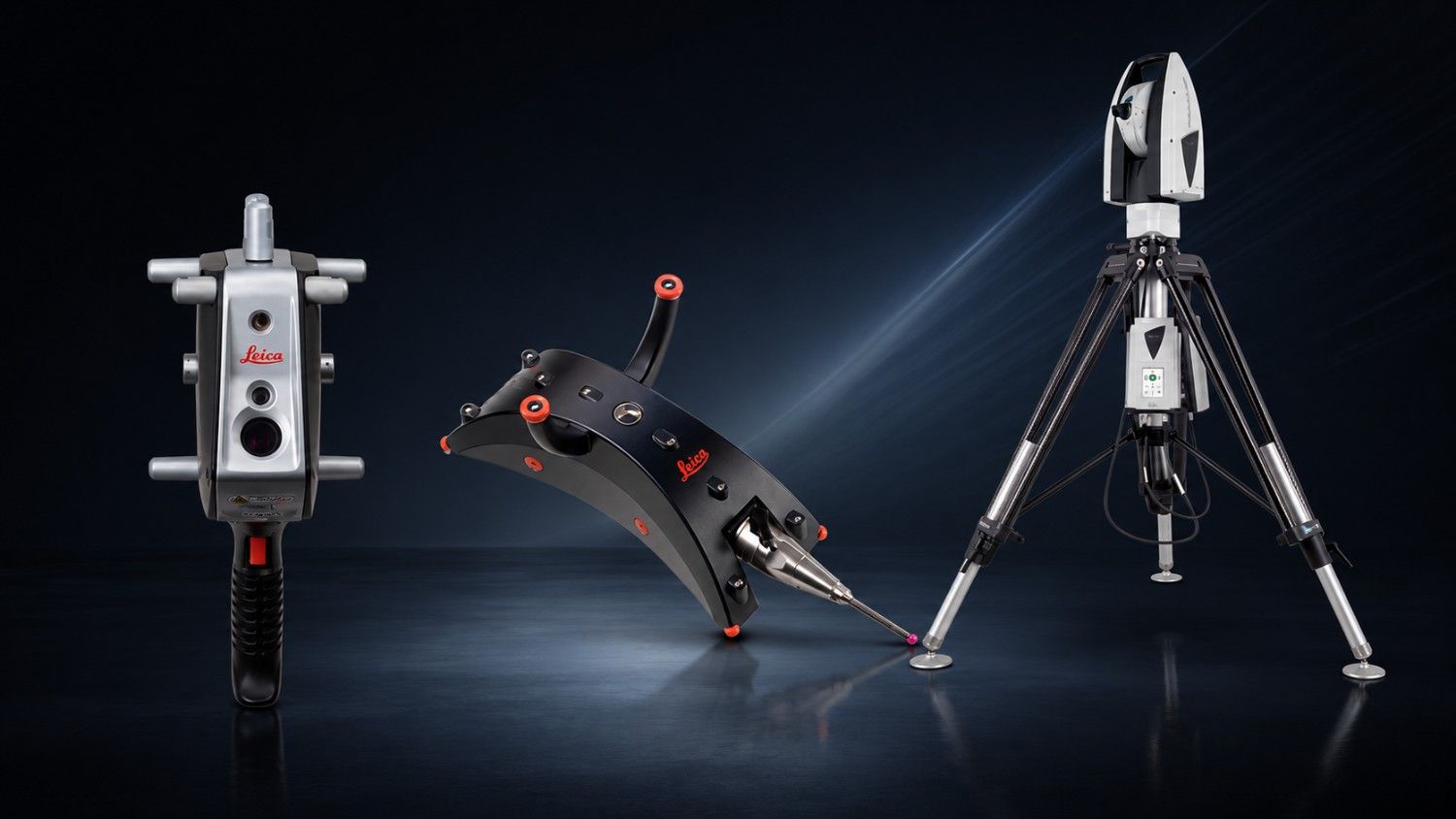

Laser Tracker – LEICA AT960-LR

Inspection Capability

Make: LEICA, Model AT960-LR with T Probe, T Scan & Accessories

• • Long-range 6DoF laser tracker with Absolute Interferometer
• • 3D measurement range up to 80 m radially
• • 6DoF measurement range up to 20 m radially

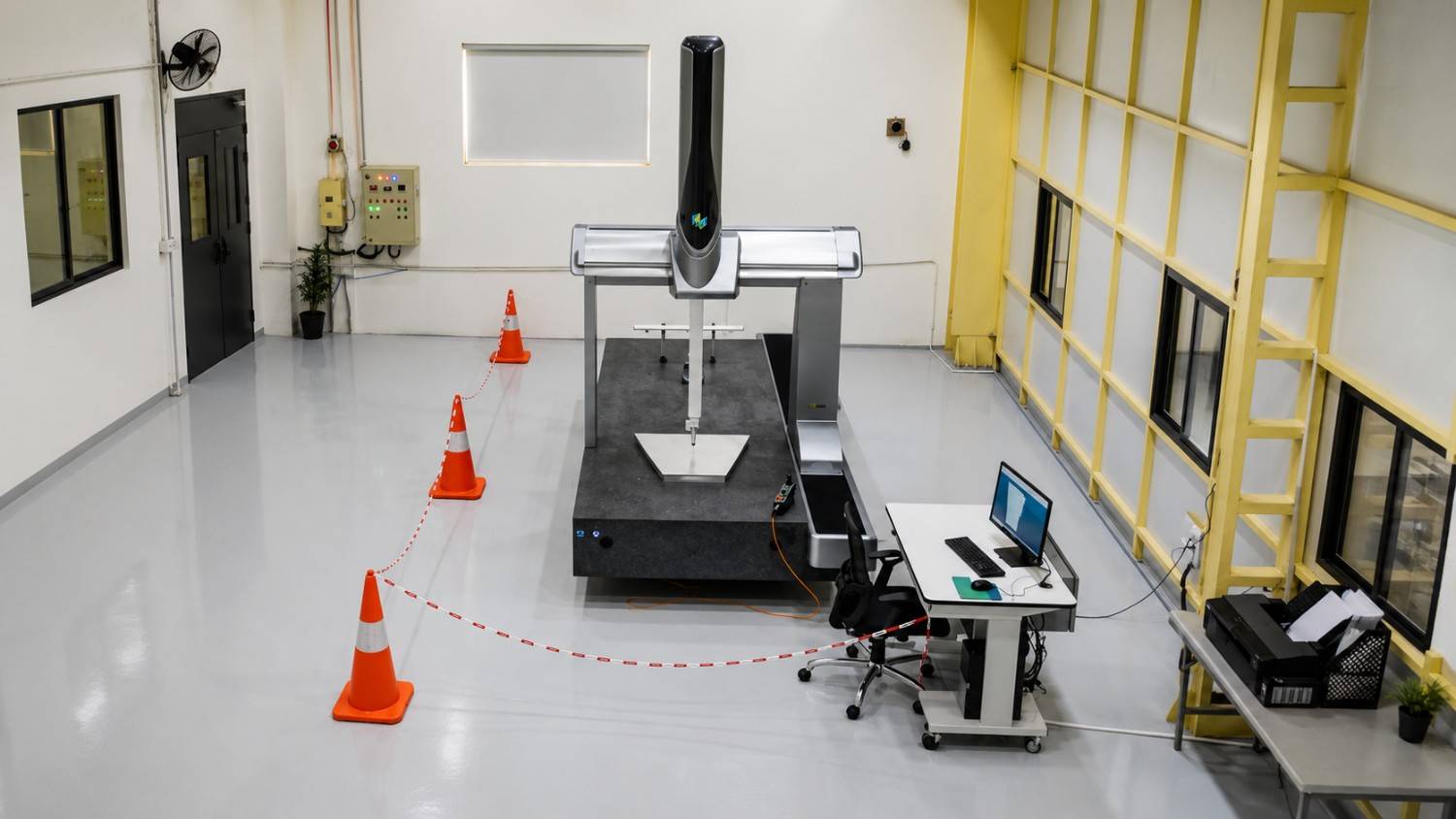

CMM (Coordinate Measuring Machine)

Make: Hexagon (2 Qty.)

Coordinate Measuring Machines (CMMs) provide high-precision dimensional inspection for machined components, tooling, and assemblies.

Measuring Capacity:

• • CMM 1: 1200 x 3000 x 1000 mm
• • CMM 2: 800 x 1500 x 600 mm

Key Features:

• • High-accuracy dimensional inspection
• • Controlled environment for precise measurements
• • Comprehensive measurement reports with GD&T evaluation
• • Suitable for aerospace, precision engineering, and industrial components

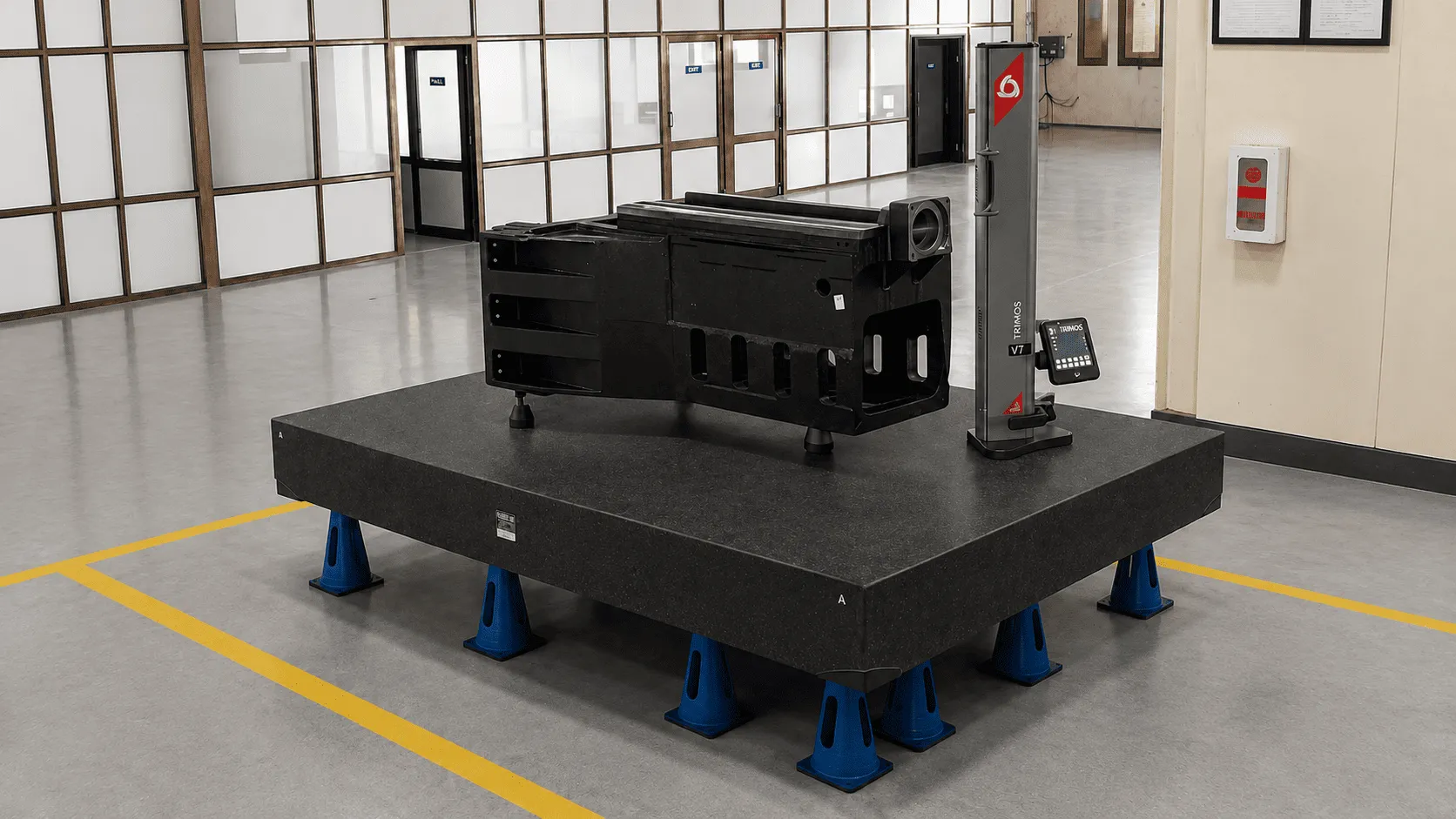

Height Masters for Faster Measurement

Make: Trimos – Switzerland

Quality Control Establishment

• • Well-equipped in-house quality control facility from manual to computer-aided measurement instruments
• • Complete range of manual instruments
• • 2D Height Masters from Trimos & Electronica
• • 3D CMM from Hexagon – Italy
• • Bed size: 4000 x 1600 mm with all options for complex parts measurement
• • One of the largest sized CMM facilities in Gujarat for critical parts machining
